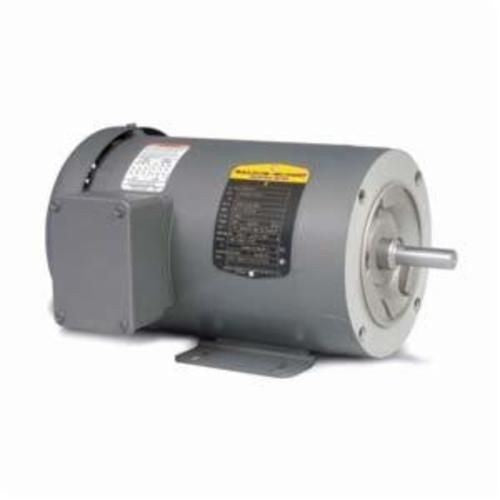

Baldor Motor CM3538 AC Motor 1/2HP

Product Description

The BALDOR MOTOR CM3538 AC Motor is a 1/2HP three-phase electric motor designed for pumps, compressors, fans, conveyors, machine tools, and other applications where three-phase power is available. It is a rugged and reliable motor designed and built in the USA, delivering high starting torque and reliability.

• Totally enclosed non-ventilated
• Pressure cast aluminum end plates with ribbed design for rigidity
• 5/8" keyed output shaft

Product Highlights

This Baldor AC motor features a heavy gauge steel frame, ball bearings, and a dynamically balanced rotor to increase bearing life.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: CM3538
• Country of Origin: USA

Technical Specifications

• Brand: Baldor
• Application: General Purpose
• Output HP: 1/2
• Output KW: 0.37
• Output RPM: 1720
• Frame Size NEMA: 56C
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP44
• Voltage: 230/460
• Frequency Rating: 60 Hz
• Insulation Class: F
• Material: Steel
• Mounting Type: F1
• Number of Speeds: 1
• Bearing Type: Ball
• Enclosure Type: TEFC
• Phase: 3
• Rotation: Reversible
• Shaft Size: 5/8 in Dia
• Speed: 1725 rpm
• Temperature Rating: 40 deg C
• Voltage Rating: 230/460 VAC
• Standard & Approvals: CSA Certified, UL Listed, RoHS Compliant, NEMA
• Horsepower: 0.5 hp
• Frame: 56
• Torque Rating: 7 ft-lb
• Service Factor: 1.25
• Catalog ID: BDRCM3538
