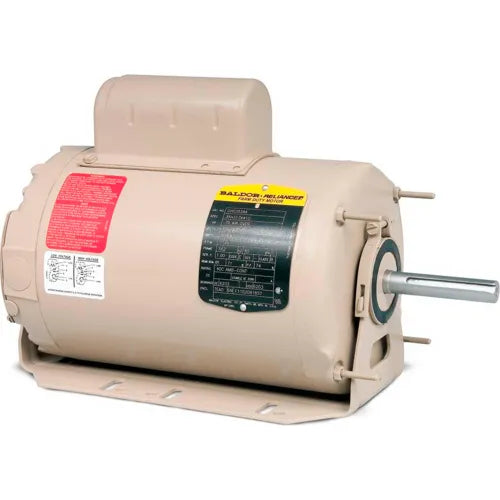

Baldor Motor chc3525a Motor .5 air overhp, 1100rpm, 1ph, 60hz, 56z, 3528c

Product Description

The BALDOR MOTOR CHC3525A is a single-phase HVAC motor. This TEAO (Totally Enclosed Air Over) unit delivers 0.5HP at 1100RPM and operates at 115/230V. It features a rugged steel frame, double-sealed ball bearings, and a corrosion-resistant epoxy finish, complete with 1 extended thru bolts and a permanent split capacitor.

• TEAO (Totally Enclosed Air Over)
• Rugged steel frame
• Double sealed ball bearings

Product Highlights

The Baldor-Reliance CHC3525A motor is ideal for HVAC applications requiring a durable and efficient single-phase motor.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: CHC3525A

Technical Specifications

• Length: 13.54 in
• Width: 11.125 in
• Height: 11.125 in
• Shaft Length: 0.5 in
• Shaft Diameter: 0.625 in
• Opposite End Bearing Size: 6203
• Frame Size: 56Z
• Drive End Bearing Size: 6309
• Length Less Shaft: 14 in
• Number of Speeds: 1
• Drive End Flange: Standard
• Motor RPM 60 Hertz: 1100 rpm
• Mounting Location: Resilient
• Phase: 1
• Manufacturer Part Number: CHC3525A
• Enclosure: TEAO
• Service Factor: 1
• Brand: Baldor-Reliance
• Bearing Type: Ball
• Insulation Class: B
• Horsepower: 1/2 HP
• Frame: 56Z
• Hertz: 60 Hz
• Design Code: -
• Rotation: CCW/CW °
• Thermal Protection: Automatic
• Enclosure Type: Totally Enclosed
• Voltage: 115/230 V
• Full Load Efficiency: 62
• Full Load Amps: 7.2/3.6 FLA
• Duty: CONT
• Poles: 6
• Rated RPM: 1100
• Ambient Temperature: 40 °C
• RPM Range: 1001-1100 rpm
• Certifications: CSA; UR
