Baldor Motor CEM3311T-G Motor 7.5HP, 1770RPM, 3PH, 60HZ, 213TC, OPSB, F1

Product Description

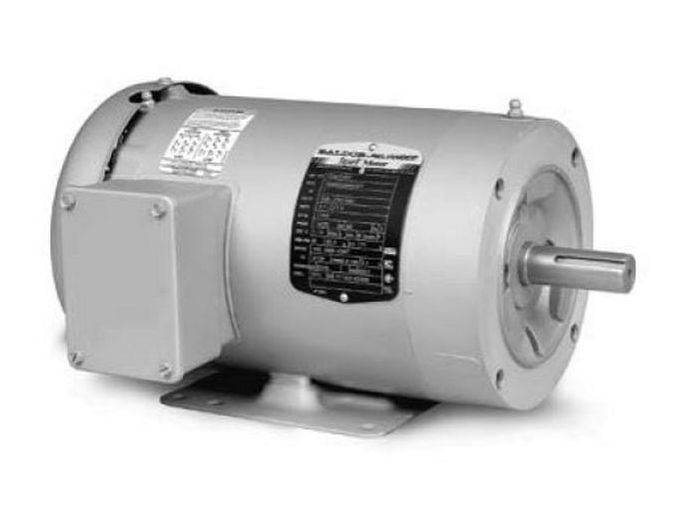

The BALDOR MOTOR CEM3311T-G is a 7.5HP, 1770RPM, 3PH, 60HZ motor with a 213TC frame, OPSB enclosure, and F1 mounting. This motor is designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications. It operates at 230.0 V @ 60 HZ, 460.0 V @ 60 HZ.

• NEMA Premium efficiency
• Inverter Ready
• 1 3/8" Keyed output shaft

Product Highlights

This motor is suitable for inverter use per NEMA MG1 Part 31.4.4.2 and features Class H insulation for increased protection on inverter use.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: CEM3311T-G

Technical Specifications

• Catalog Number: CEM3311T-G
• Enclosure: OPSB
• Frame: 213TC
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 7.500 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
• Agency Approvals: CSA / CSA EEV / UR
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 19.400 A @ 230.0 V, 9.700 A @ 460.0 V
• Design Code: A
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 91.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 9.7 a
• Heater Indicator: No Heater
• Insulation Class: H
• Inverter Code: Inverter Ready
• IP Rating: NONE
• KVA Code: J
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Termination: Flying Leads
• Motor Type: 3734M
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 17.07 IN
• Power Factor: 79
• Product Family: General Purpose
• Pulley Face Code: C-Face
• Rodent Screen: None
• Service Factor: 1.15
• Shaft Diameter: 1.375 IN
• Shaft Ground Indicator: Shaft Grounding
• Shaft Rotation: Reversible
• Speed: 1770 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Application: AEGIS HVAC
• Output HP: 7.5
• Output KW: 5.5
• Output RPM: 1770
• Frame Size NEMA: 213TC
• Mount NEMA: C Face With Base
• Enclosure NEMA: OPSB
• Enclosure IEC: IP22
• Voltage: 230/460//190/380
• Mounting: C-face w/ rigid base
• Manufacturer: Baldor-ABB Motors
• Family Series: Baldor-ABB Motors Motors
• Description: 7.5HP, 1770RPM, 3PH, 60HZ, 213TC, OPSB
• Type: General Purpose
• Horsepower: 7-1/2 hp
• RPM: 1,800 RPM
• AC Voltage: 230 VAC, 460 VAC
• Nominal Voltage: 240 VAC, 480 VAC
• Open Drip Proof: Open Drip Proof
• Current Rating: 9.7 A
• Composition: Steel
• Length: 17.06 "
• Model #: CEM3311T-G
• Frame Number: 213
• Frame Remarks: FOOTED
• Classification: General Purpose
• Volts: 230/460
• XP Class and Group: None
• XP Division: Not Applicable
