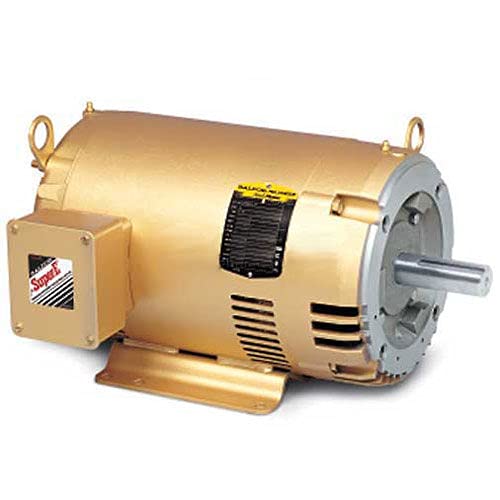

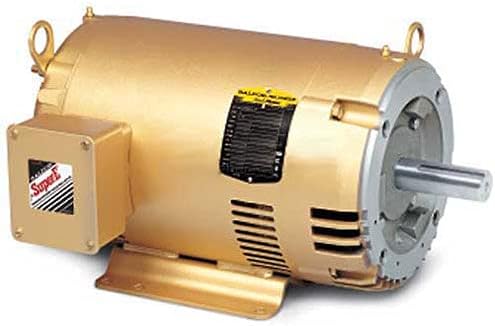

Baldor Motor CEM2535T General purpose motor 30 HP (286TC)

Product Description

Baldor Motor CEM2535T is a 30 HP, three-phase general purpose electric motor rated at 1775 RPM and designed for continuous duty. The motor is inverter ready, rated 230/460 V at 60 Hz, and features a 286TC frame with OPSB enclosure, C-face pulley configuration, and Polyrex EM bearing grease. Typical full-load efficiency is 94.1% and the service factor is 1.15.

• 30 HP, 3-phase motor; rated speed 1775 RPM; input voltage 230/460 V at 60 Hz
• Inverter ready with insulation class F, service factor 1.15, and 94.1% efficiency at full load
• C-face shaft (1.875 in diameter) with pulley-end extension, flying lead termination (9 @ 10 AWG), OPSB enclosure

Product Highlights

30 HP 3-phase industrial motor; 230/460 V, 1775 RPM; inverter ready, 94.1% efficiency; C-face shaft, OPSB, Polyrex EM grease

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: CEM2535T
• Country of Origin: USA

Technical Specifications

• Brand: Baldor Motor
• Manufacturer Part Number: CEM2535T
• Horsepower: 30 HP @ 60 Hz
• Phase: 3
• Rated Speed: 1775 RPM
• Synchronous Speed: 1800 RPM @ 60 Hz
• Frame: 286TC
• Enclosure: OPSB (open drip-proof)
• Input Voltage: 230/460 V @ 60 Hz
• Full Load Amps: 74 A @ 230 V; 37 A @ 460 V
• Service Factor: 1.15
• Insulation Class: F
• Inverter Compatible: Yes (Inverter Ready)
• Efficiency @ 100% Load: 94.1%
• Power Factor: 80%
• Duty Rating: Continuous (CONT)
• Mounting Arrangement: F1
• Number of Poles: 4
• Shaft Diameter: 1.875 in
• Shaft Extension Location: Pulley end
• Pulley Face Code: C-Face
• Pulley End Bearing Type: Ball
• Motor Lead Termination: Flying leads
• Motor Lead Quantity/Wire Size: 9 @ 10 AWG
• Ambient Temperature Rating: 40 �C
• Bearing Grease Type: Polyrex EM (-20F to +300F)
• Lifting Lugs: Standard Lifting Lugs
• KVA Code: H
• Design Code: A
• Nameplate Spec: SPEC. 40D102X339G1
• Approximate Weight: 355 lb
• Mounting: C-Face / Rigid (foot mounted)
