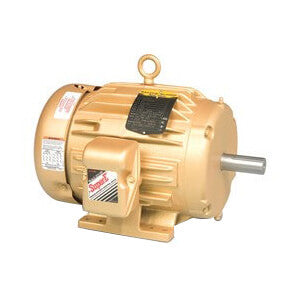

Baldor EM3774T General Purpose AC Motor 10HP 1760RPM 215T Frame TEFC

Product Description

Presenting the Baldor EM3774T, a high-performance 10 horsepower general purpose AC motor renowned for its reliable service in industrial environments. This motor, ideal for applications including pumps, compressors, and HVAC systems, operates on a dual voltage system (230/460 volts) and delivers a consistent 1760 RPM.

• Dual voltage design for versatile use in different settings
• TEFC enclosure to protect against dust and moisture
• Robust design with a 215T frame and cast iron construction

Product Highlights

This motor is engineered to deliver high efficiency and is capable of handling demanding applications across various sectors. The totally enclosed fan-cooled (TEFC) design ensures optimal protection in harsh environments.

Product Information

Standard Information

• Brand: Baldor
• MPN: EM3774T
• Phase: Three-phase operation
• Voltage: 230/460V

Technical Specifications

• Frame: 215T
• Enclosure Type: TEFC
• Power Output: 10HP
• Speed: 1760 RPM
• Weight: 191 pounds
• Dimensions: Shipping - 28.625 inches (length), 18.125 inches (width), 17.625 inches (height)
