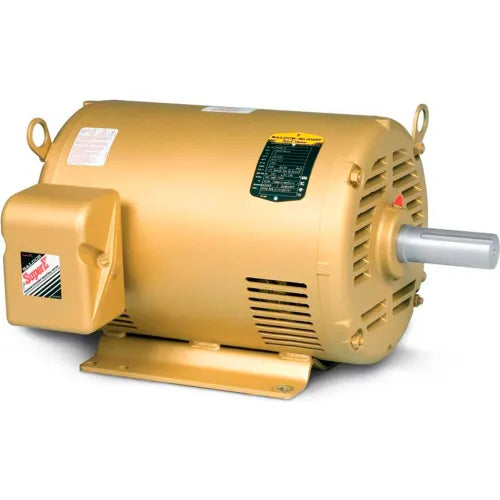

Baldor EM3309T 5 HP 3-phase motor (215T frame) EM3309T

Product Description

The Baldor EM3309T is a 5 HP, 3-phase general purpose AC motor rated for 60 Hz with a nominal speed of 1160 rpm and synchronous speed of 1200 rpm. It is a frame 215T, open drip proof (OPSB) motor with dual voltage capability (230/460 V) and inverter ready windings. The motor features NEMA premium efficiency (89.5% at full load), 1.15 service factor, F insulation class, and a 1.375 in shaft on the pulley end.

• 5 HP, 3-phase motor; nominal 1160 rpm, synchronous 1200 rpm; 6 poles
• Frame 215T, ODP/OPSB enclosure, mounting arrangement F1 (foot-mounted)
• Dual voltage 230/460 V (FLA 14.8/7.4 A), inverter ready, NEMA premium efficiency 89.5%

Product Highlights

General purpose 5 HP 3-phase motor, frame 215T, ODP enclosure, inverter ready, 230/460 V dual voltage

Product Information

Standard Information

• Brand: BALDOR
• Manufacturer Part Number: EM3309T

Technical Specifications

• Brand: Baldor
• MPN: EM3309T
• Model Number: EM3309T
• Product Family: General Purpose
• Horsepower: 5 HP
• Phase: 3
• Frequency: 60 Hz
• Synchronous Speed: 1200 RPM @ 60 Hz
• Nominal Speed: 1160 RPM
• Poles: 6
• Frame: 215T
• Enclosure: ODP (OPSB)
• Voltage: 230/460 V (dual voltage)
• Full Load Amps: 15.2 A @ 208 V; 14.8 A @ 230 V; 7.4 A @ 460 V
• Efficiency @ 100% Load: 89.5%
• Service Factor: 1.15
• Insulation Class: F
• Inverter Rating: Inverter ready (ISR windings noted)
• Starting Method: Direct on line
• Mounting Arrangement: F1 (foot-mounted)
• Mounting Type: Rigid base
• Shaft Diameter: 1.375 in
• Shaft Extension Location: Pulley end
• Bearing Type: Pulley end ball bearing
• Power Factor: 0.71
• KVA Code: K
• Design Code: A
• Duty Rating: CONT
• Ambient Temperature: 40 C

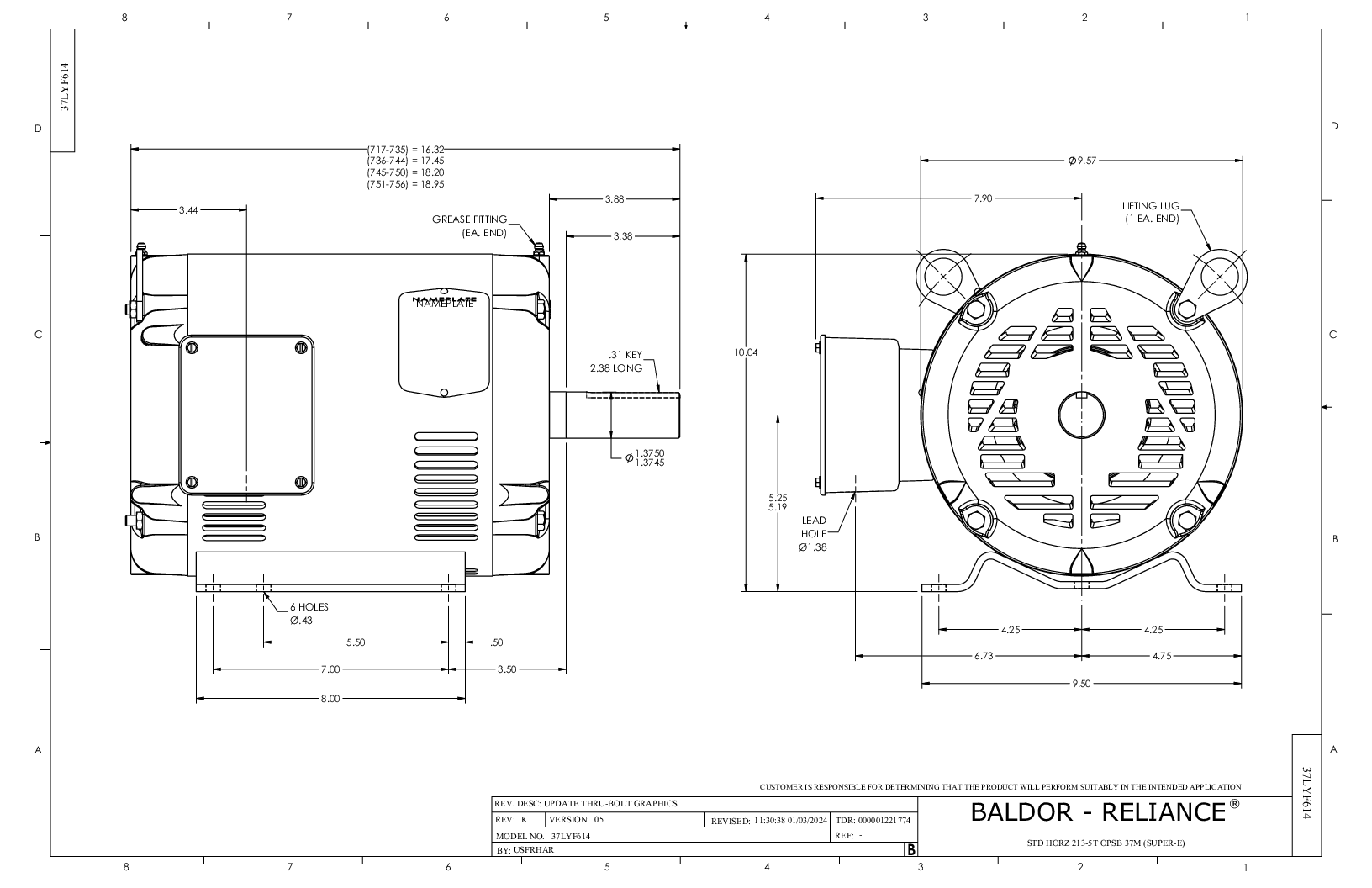

• Overall Length: 17.45 in
• Motor Lead Termination: Flying leads
• Motor Lead Quantity/Wire Size: 9 @ 14 AWG
• Agency Approvals: CUL, UR, EEV, NEMA Premium
• Product Features: Inverter ready, NEMA premium efficiency, service factor 1.15
