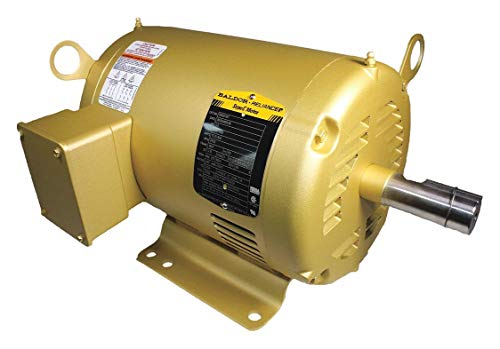

Baldor EM3219T 230/460v 7.5 HP General Purpose Motor 3450 RPM

Product Description

The Baldor Electric EM3219T 7.5 HP General Purpose Motor is designed for demanding applications in various industrial settings. With a 3-phase, 3450 RPM motor, it ensures efficient and reliable performance.

• General Application
• 3-Phase Design
• Open Dripproof Enclosure

Product Highlights

This motor features a robust construction with a voltage range of 208-230/460 V. It is compact, fitting seamlessly into existing systems, ideal for manufacturing, construction, and mining environments. The durable steel frame and ball bearings enhance its longevity in harsh conditions.

Product Information

Standard Information

• Brand: Baldor Motor
• MPN: EM3219T

Technical Specifications

• Item: General Purpose Motor
• HP: 7.5
• Voltage: 208-230/460 V
• Full Load Amps: 18-17.2/8.6
• Motor Application: General Application
• Motor Design: 3-Phase
• Motor Enclosure Design: Open Dripproof
• Nominal Efficiency: 88.5%
• Service Factor: 1.15
• RPM: 3450
• RPM Range: 3001-3600
• Frame: 184T
• Length Less Shaft: 12.25 inches
• Overall Length: 15 inches
• Shaft Diameter: 1.125 inches
• Shaft Length: 2.75 inches
• Mounting: Base Horizontal
• Thermal Protection: None
• Insulation Class: F
• Bearings: Ball
• Max. Ambient Temp.: 40 Degrees C
• Rotation: CW/CCW
• Duty: Continuous
• Efficiency Group: NEMA Premium
• Standards: UL Recognized, CSA Certified
• Warranty: 3 Years
• UNSPSC: 26101612
