Baldor EM2559T-4CI Motor 125HP 1785RPM 405T ODP FOOT

Product Description

The BALDOR EM2559T-4CI is a 125 HP motor operating at 1785 RPM. This three-phase motor is designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications. It features a 405T frame, Open Drip Proof (ODP) enclosure, and is foot-mounted (F1).

• Heavy duty Cast Iron frame
• 2 7/8" Keyed output shaft
• Optimized airflow design providing higher horsepower in a smaller package

Product Highlights

This motor is suitable for demanding industrial applications. Super-E Motors are designed to conserve energy over extended time periods.

Product Information

Standard Information

• Brand: BALDOR
• Manufacturer Part Number: EM2559T-4CI
• Country of Origin: United States

Technical Specifications

• Catalog Number: EM2559T-4CI
• Enclosure: ODP
• Frame: 405T
• Frame Material: Cast Iron
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 125.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 460.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CCSA US, CCSAUSEEV, CSA EEV, CURUSEEV
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Current @ Voltage: 141.000 A @ 460.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 95.4 %
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 141.0 a
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Inverter Ready
• KVA Code: G
• Lifting Lugs: No Lifting Lugs
• Motor Lead Quantity/Wire Size: 6 @ 4 AWG
• Motor Type: A40064M
• Mounting Arrangement: F1
• Number of Poles: 4
• Power Factor: 87
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Service Factor: 1.15
• Shaft Diameter: 2.875 IN
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1785 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Brand: Baldor
• Application: General Purpose
• Output HP: 125
• Output KW: 93.2
• Output RPM: 1785
• Frame Size NEMA: 405T
• Mount NEMA: With Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Voltage: 460
• MPN: EM2559T-4CI
• Country of Origin: United States
• HP: 125
• Hz: 60.0
• Manufacturer: Baldor-Reliance
• Motor Enclosure Type: ODP - Open Drip Proof
• Motor Frame Size: 405T
• SPEC: P40G298
• UPC: 781568525012
• Product Type: Pump Motors
• MODEL: EM2559T-4CI
• SKU: 699463
• UOM: each
• Motor Weight: 1118
• Overall Length: 34 in
• Synchronous RPM: 1800
• Output: 125 HP
• Pallet Quantity: 0
• Weight: 1, 153. 000 LB
• Multiplier: L1
• Item Type: MOTOR
• Manufacturing Plant: ATHENS PLANT
• Poles: 04
• Class: STOCK
• Type: A40064M
• Status: Active
• Commodity Code: 8501. 53. 4080
• Origin: US
• Revision: D
• Prod. Type: A40064M
• Elec. Spec: A40WG0248
• CD Diagram: 416820-036

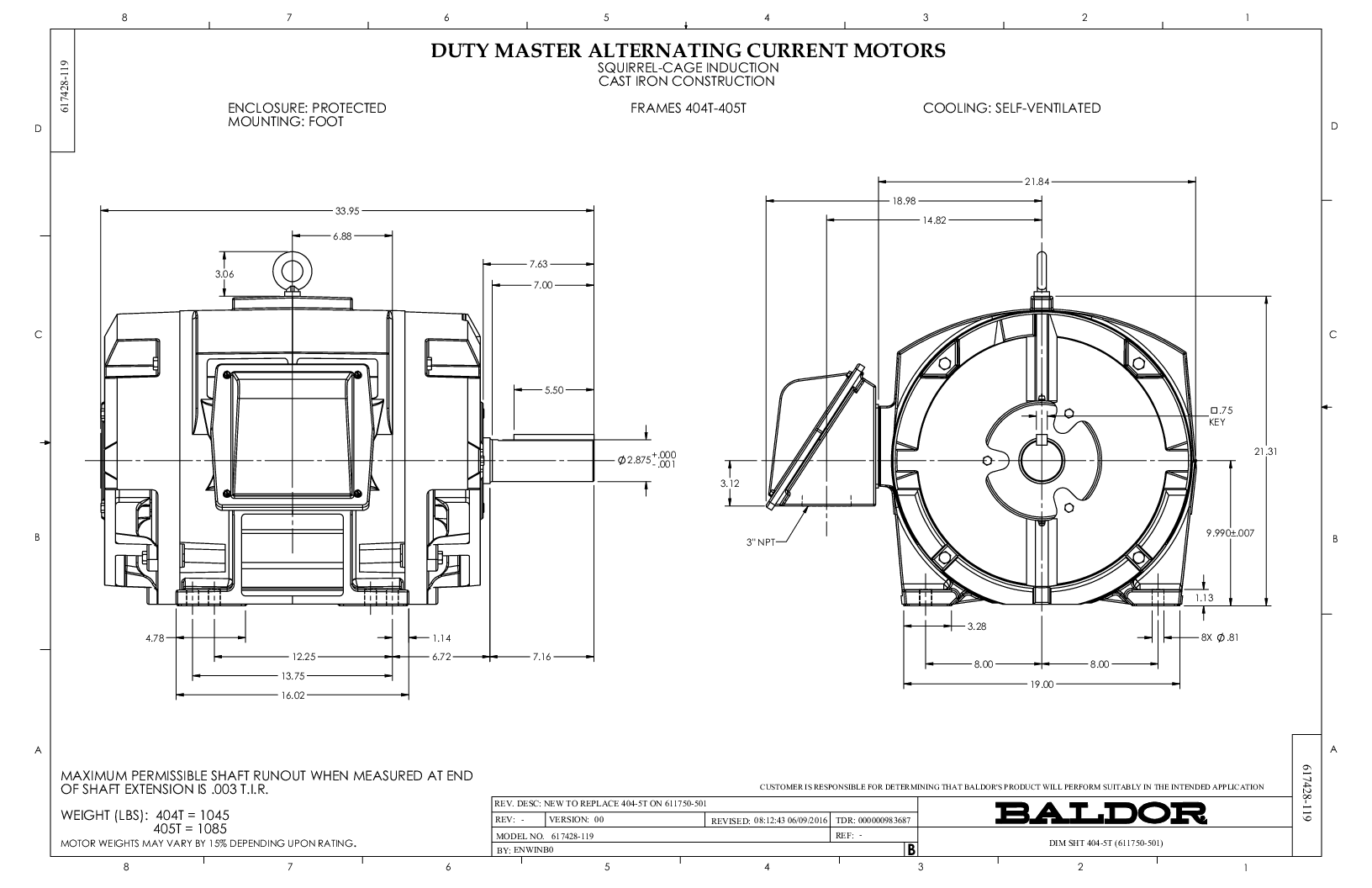

• Mech. Spec: 611750-501
• Mounting: F1
• Base: Rotation
• Insulation: B
• Leads: 3#4 (02 per group)
• Literature: MN408
• Nameplate No.: NP2383L
• DESIGN: B
• AMB: 40
• SF: 1. 15
• DRIVE END BEARING: 80BC03J30X
• DUTY: CONT
• INSUL. CLASS: B
• OPP D. E. BEARING: 80BC03J30X
• ENCL: DP
• CODE: G
• SER. NO.: POWER FACTOR
• NEMA-NOM-EFFICIENCY: 95. 4
• MAX CORR KVAR: 25. 0
• GUARANTEED EFFICIENCY: 95. 0
• NEMA NOM/CSA QUOTED EFF: MOTOR WEIGHT
