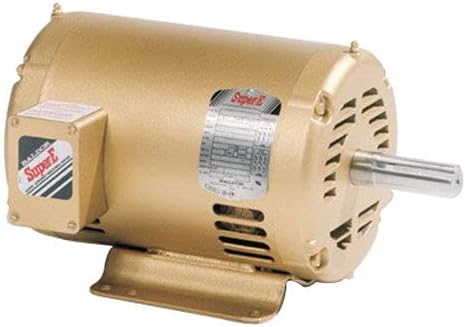

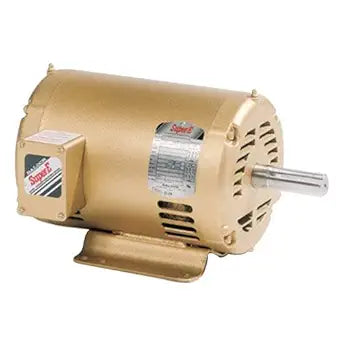

Baldor EM2546T 60HP, 3540RPM, 3PH, 60HZ, 326TS, 4250M, OPSB, F

Product Description

The BALDOR EM2546T is a general purpose motor. Designed to meet energy efficiency requirements, this motor delivers high starting torque and overload capability. It features an insulation system that meets NEMA MG1 Part 31.4.4.2 for VFD use and is considered Inverter Ready.

• Heavy duty frame
• 1 7/8" Keyed output shaft
• Optimized airflow design providing higher horsepower in a smaller package

Product Highlights

This motor is suitable for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications. Super-E Motors are designed to conserve energy over extended time periods.

Product Information

Standard Information

• Brand: BALDOR
• Manufacturer Part Number: EM2546T

Technical Specifications

• Catalog Number: EM2546T
• Enclosure: OPSB
• Frame: 326TS
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 60.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ 460.0 V @ 60 HZ
• Agency Approvals: NEMA_PREMIUM CURUSEEV
• Ambient Temperature: 40
