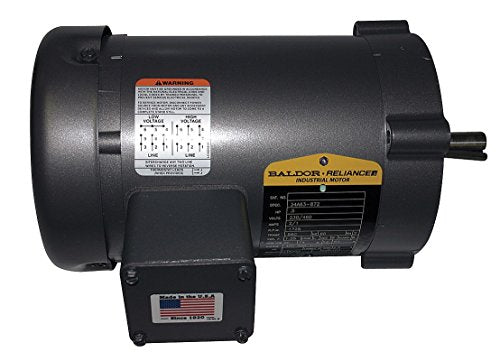

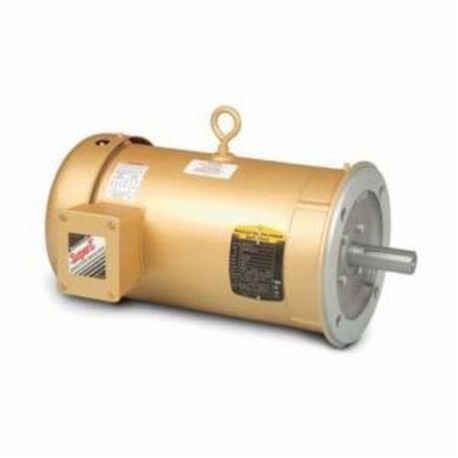

Baldor Electric VEM3554T General Purpose Motor 1.5 HP 208-230/460 VAC

Product Description

The Baldor Electric VEM3554T General Purpose Motor is engineered for efficiency and durability in industrial settings. This motor operates at 208/230/460 VAC, drawing 2.2/4.4/4.5 A with a horsepower of 1.5 and a speed of 1760 rpm. It fits a 145 Frame and is ideal for various applications requiring a reliable motor solution.

• Rated for continuous duty with a service factor of 1.15
• Equipped with ball bearings and a rolled steel frame material
• Offers dual rotation (CW/CCW) flexibility

Product Highlights

This motor features a totally enclosed fan-cooled design, ensuring operation in diverse environments without exposure to external elements. Its rigid base mounting and horizontal positioning make it versatile for different setups.

Product Information

Standard Information

• Phase: 3
• Efficiency Group: Premium, 86.5% nominal efficiency

Technical Specifications

• Frame Size: 145TC
• Electrical: 208-230/460 Volts, 60 Hz
• Protection: No specific thermal protection
• Insulation Class: F
• Operational Environment: Maximum ambient temperature 40 degrees Celsius
