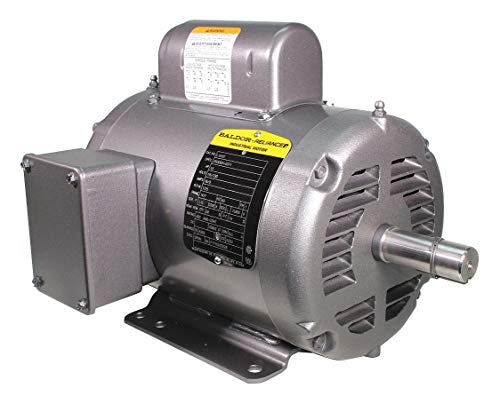

Baldor Electric L1319T General Purpose Motor 1-1/2 HP 1725 RPM 115/230V

Product Description

The Baldor Electric L1319T General Purpose Motor is designed for various industrial applications. This 1-1/2 HP motor operates at 1725 RPM and supports voltages of 115/230V, delivering reliable performance.

• 1-1/2 horsepower
• 1725 RPM speed
• 115/230V compatibility

Product Highlights

This motor features a capacitor-start design and an open dripproof enclosure for effective cooling. It is built for general-purpose applications, providing durable and efficient operation.

Product Information

Standard Information

• Brand: Baldor Electric
• MPN: L1319T

Technical Specifications

• Horsepower: 1-1/2 HP
• Speed: 1725 RPM
• Voltage: 115/230V
• Motor Design: Capacitor-Start
• Motor Enclosure Design: Open Dripproof
• Frame: 145T
• Full Load Amps: 18/9
• Insulation Class: B
• Service Factor: 1.15
• Bearings: Ball
• Max. Ambient Temp: 40 Degrees C
• Rotation: CW/CCW
• Length Less Shaft: 9-7/8 inches
• Motor Shaft Design: Keyed
• Standards: UL Recognized, CSA Certified
• Nominal Efficiency: 68%
• Includes: Conduit Box
• Warranty: 1 year
• UNSPSC: 26101602
