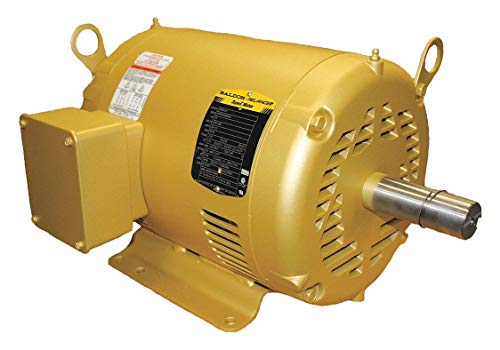

Baldor Electric EM3312T General Purpose Motor, 10 HP, 3-Phase, 3475 RPM, 208-230/460V, Frame 213T

Product Description

The Baldor Electric EM3312T General Purpose Motor, with MPN EM3312T, is designed for industrial applications requiring reliable and consistent performance. This motor operates at 10 HP and features a three-phase configuration.

• Open drip-proof enclosure
• 3475 nameplate RPM
• Voltage: 208-230/460

Product Highlights

Engineered for heavy-duty use, the Baldor Electric EM3312T General Purpose Motor is a robust and efficient choice for numerous industrial applications.

Product Information

Standard Information

• Brand: Baldor Electric
• MPN: EM3312T

Technical Specifications

• HP: 10
• Phase: 3
• Enclosure: Open Dripproof
• Nameplate RPM: 3475
• Frame: 213T
• Voltage: 208-230/460
• Full Load Amps: 25.6-24/12
• Mounting: Base, Horizontal
• Insulation Class: F
• Service Factor: 1.15
• Bearings: Ball
• Max Ambient Temp: 40 Degrees C
• Shaft Dia: 1-3/8 inches
• Shaft Length: 3-3/8 inches
• Length Less Shaft: 14-15/16 inches
• Overall Length: 16-5/16 inches
• Motor Shaft Design: Keyed
• RPM Range: 3001-3600
• Standards: UL Recognized, CSA Certified
• Duty: Continuous
• Efficiency Group: NEMA Premium
• Nominal Efficiency: 89.5%
• Warranty: 3 Years
• UNSPSC: 26101612
