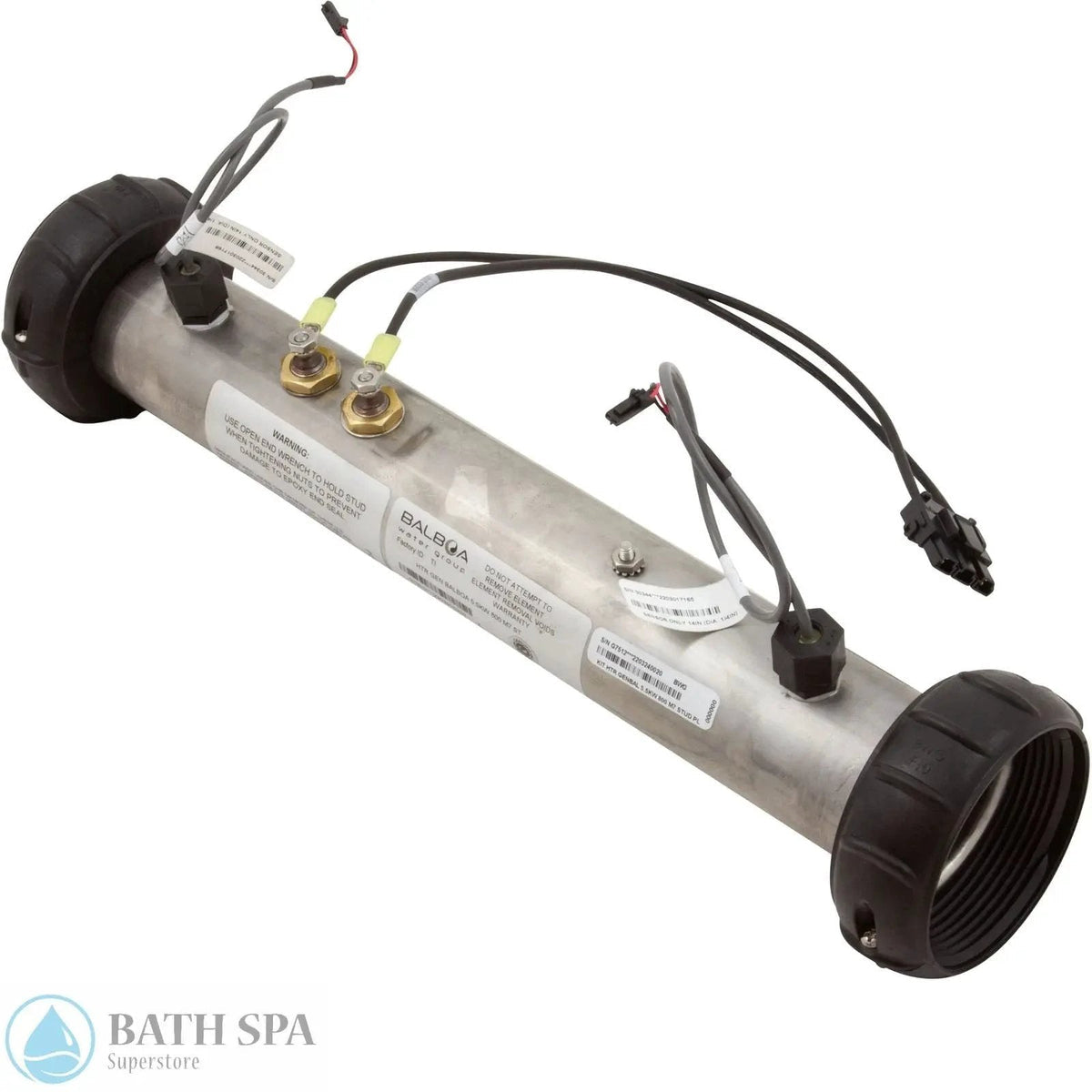

Balboa Water Group g7512-01 Flo-thru Spa Heater 5.5kw

Product Description

The BALBOA WATER GROUP g7512-01 is a 5.5kW flo-thru spa heater rated for 230-volt operation, designed as a drop-in replacement for M7-series spa systems. This heater measures 2 inches in diameter by 15 inches in length and installs with stud-mount hardware. It ships with M7 sensors and split nuts included. Tailpieces and gaskets are not included and must be sourced separately. Licensed pool and spa service technicians are the primary installers for this type of heater element assembly.

This flo-thru heater is suited for residential and light-commercial spa applications using Balboa M7 control systems. The drop-in style simplifies swaps during routine equipment service or after element failure. Because the unit ships with M7 sensors and split nuts, technicians can complete the mechanical portion of the install without sourcing those components separately. Confirm tailpiece and gasket availability before beginning the job to avoid delays at the equipment pad.

Key Features

• 5.5kW output at 230 volts for reliable spa water heating
• Flo-thru design with drop-in replacement fitment for M7-series systems
• Stud-mount configuration for secure installation
• Includes M7 sensors and split nuts — tailpieces and gaskets not included
• Compact 2-inch by 15-inch form factor fits standard M7 heater housings

Compatibility

Designed as a drop-in replacement for Balboa Water Group M7-series spa heater assemblies operating at 230 volts.

Installation Notes

Installation should be performed by a licensed pool and spa technician familiar with low-voltage spa control systems. Disconnect all power to the spa at the disconnect box before removing the existing heater element. Verify that tailpieces and gaskets are on hand before beginning work, as these components are not included. Inspect the heater tube housing for scale buildup or corrosion before reinstalling and confirm all sensor connections are seated properly after assembly.

Technical Specifications

• Wattage: 5.5kW
• Voltage: 230 volts
• Heater Type: Flo-Thru
• Heater Style: Drop-In Replacement
• Diameter: 2 inches
• Length: 15 inches
• Included Components: M7 sensors, split nuts
• Not Included: Tailpieces, gaskets

Standard Information

• Brand: BALBOA WATER GROUP
• Manufacturer Part Number: g7512-01
