Balboa Water Group g6506-02 Spa Retrofit Control Kit 5.5kw

Product Description

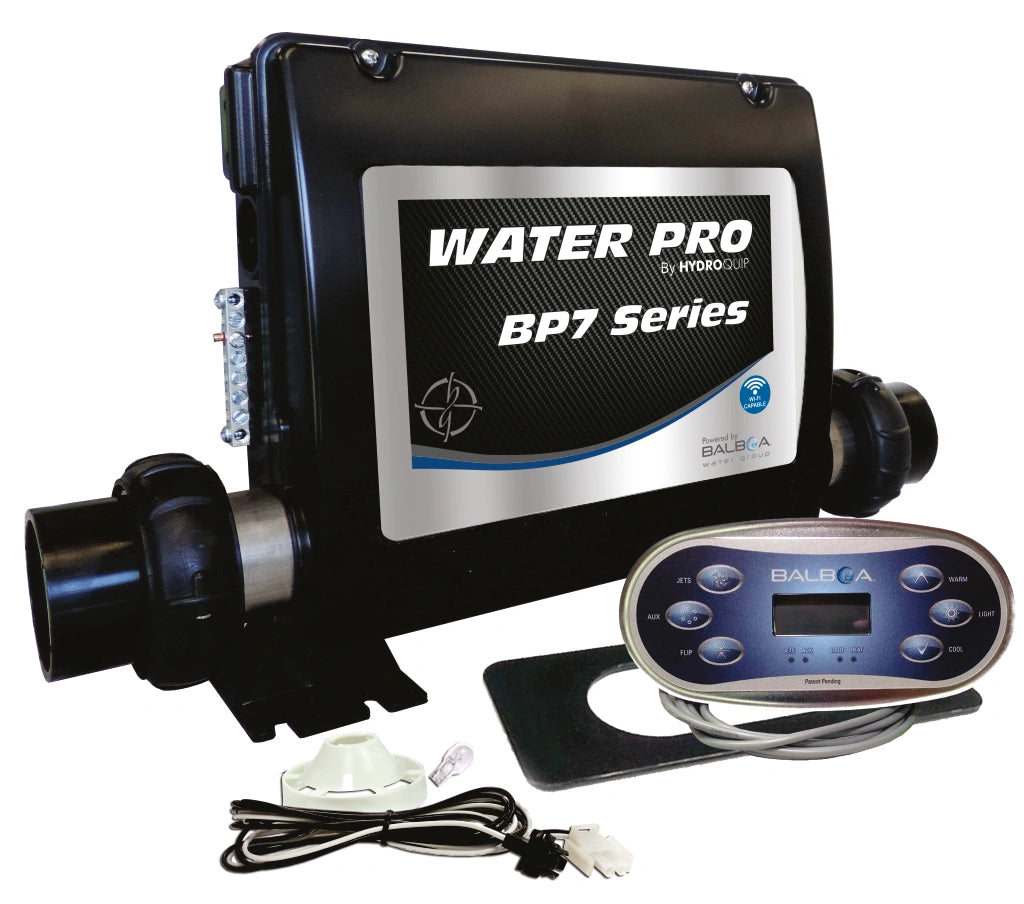

The BALBOA WATER GROUP g6506-02 is a spa retrofit control kit that combines the BP7 control platform with a TP600 topside interface and a 5.5kW heater configuration. It is designed for service and replacement applications where an older or failed spa control system needs to be brought up to a current Balboa standard. The kit delivers both the main control logic and the user-facing topside panel as a matched pair, reducing compatibility guesswork during a swap. Pool and spa service technicians install this kit when a complete control system replacement is the most practical repair path.

This kit is suited for residential and light-commercial spa applications requiring a full control system replacement. It is particularly relevant in retrofit scenarios where the existing control system has failed or reached end of service life. Because the kit bundles the BP7 board, the TP600 topside, and the 5.5kW heater element configuration together, it supports a complete changeover rather than a piecemeal component replacement. Service calls involving aging spa packs with non-functional displays, failed relays, or burned heater assemblies are common install scenarios for this kit.

Key Features

• BP7 control platform paired with TP600 topside interface as a matched set
• 5.5kW heater configuration included in the retrofit package
• Designed for replacement and upgrade of older or failed spa control systems
• Simplifies retrofit work by combining control board and topside in one kit
• Modern Balboa control architecture replaces legacy spa pack designs

Compatibility

Designed as an OEM-style retrofit replacement for spa control systems compatible with the Balboa BP7 control platform and TP600 topside interface. Verify existing plumbing, pump, and heater connections match the kit configuration before installation.

Installation Notes

Installation of this retrofit control kit should be performed by a licensed pool and spa service technician. Disconnect all power to the spa at the disconnect panel before removing the existing control system. Verify that the incoming voltage, circuit breaker rating, and wiring gauge comply with NEC requirements for spa equipment before connecting the new kit. Do not energize the unit until all hydraulic connections are confirmed leak-free and the heater is confirmed to be fully submerged.

Technical Specifications

• Heater Output: 5.5kW
• Control Platform: BP7
• Topside Interface: TP600
• Kit Type: Retrofit Control Kit

Standard Information

• Brand: BALBOA WATER GROUP
• Manufacturer Part Number: g6506-02
