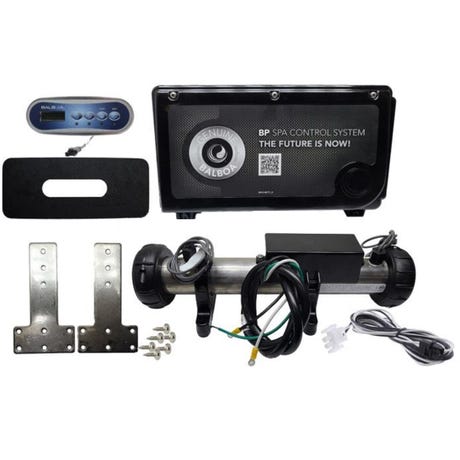

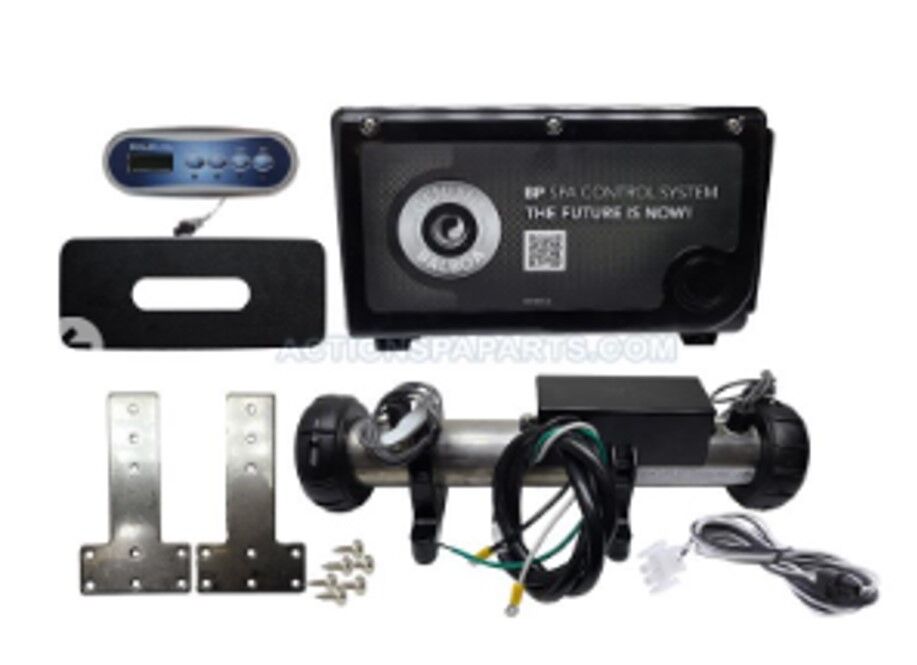

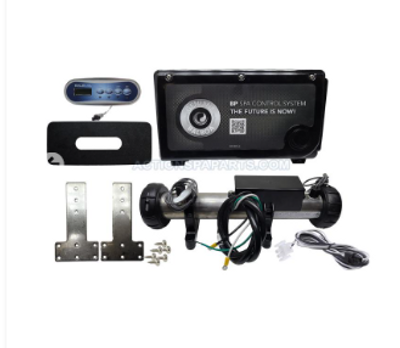

Balboa Water Group G6412-02 BP100G2 Spa Control System

Product Description

The Balboa Water Group G6412-02 is a BP100G2 spa control system designed to operate efficiently on both 115V and 230V power sources. It features M8 Pump Saver Technology, enhancing energy efficiency. The system includes a TP200T topside panel, enabling easy user interface for all spa functions. The remote heater is a powerful 4.0kW unit with durable stainless steel housing, allowing flexible installation either on the suction or discharge side of the pump. The control system ensures optimal safety with freeze protection and high-limit protection, making it reliable for various conditions. It also offers filtration and economy modes. Additionally, the system is Wi-Fi capable with the purchase of a separate module, providing modern connectivity options.

• Includes TP200T topside panel for controlling spa features
• Equipped with a remote 4.0kW heater
• Supports multiple protection features including freeze and high-limit protection

Product Highlights

Product Information

Standard Information

• Voltage: 110/220V
• Manufacturer: Balboa Water Group

Technical Specifications

• Control System: Balboa BP100G2 Spa Control System: G4311
• Topside Panel: Balboa TP200T Topside Panel w/Overlay: 57282
• Pump 1 Circuit: 2 speed, 110/220V, 12A Max*
• Pump 2/Blower Circuit: 1 speed, 110/220V, 12A Max*
• Circ Pump Circuit: 110/220V, 2A Max*
• Ozone Circuit: 110/220V, 1A Max*
• Heater: Remote 4.0KW, 240V Flo-Thru Incoloy High Flow heater with M7 technology
• Heater Housing: Stainless steel
• Wi-Fi Compatible: Yes
• System Voltage: 115/230V
• Light Circuit: 12V 12W
