Balboa Water Group G6406-02 BP7 Control Retrofit Kit 4.0KW Remote Heater TP600

Product Description

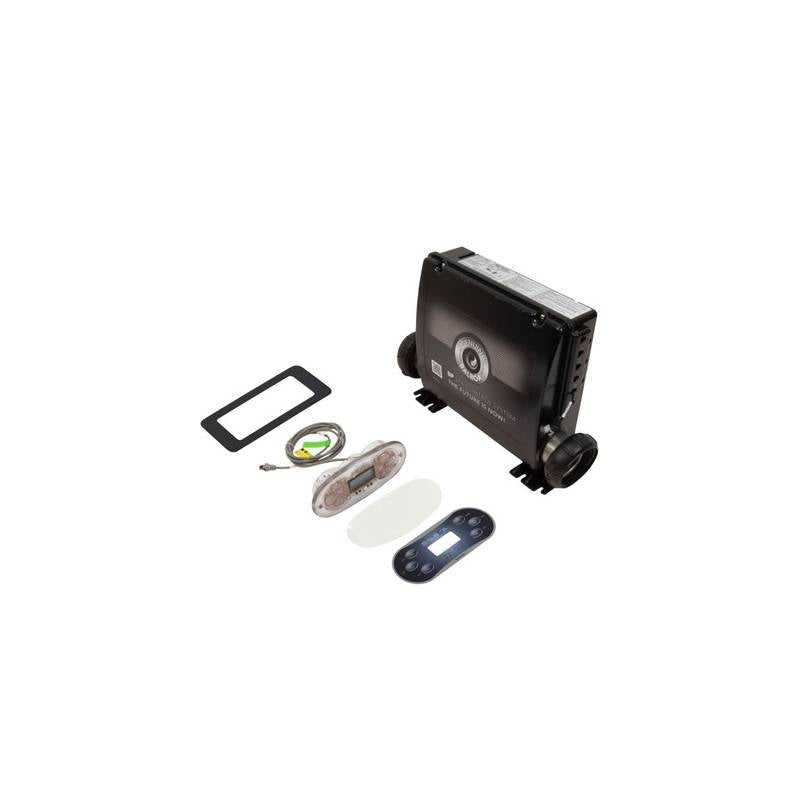

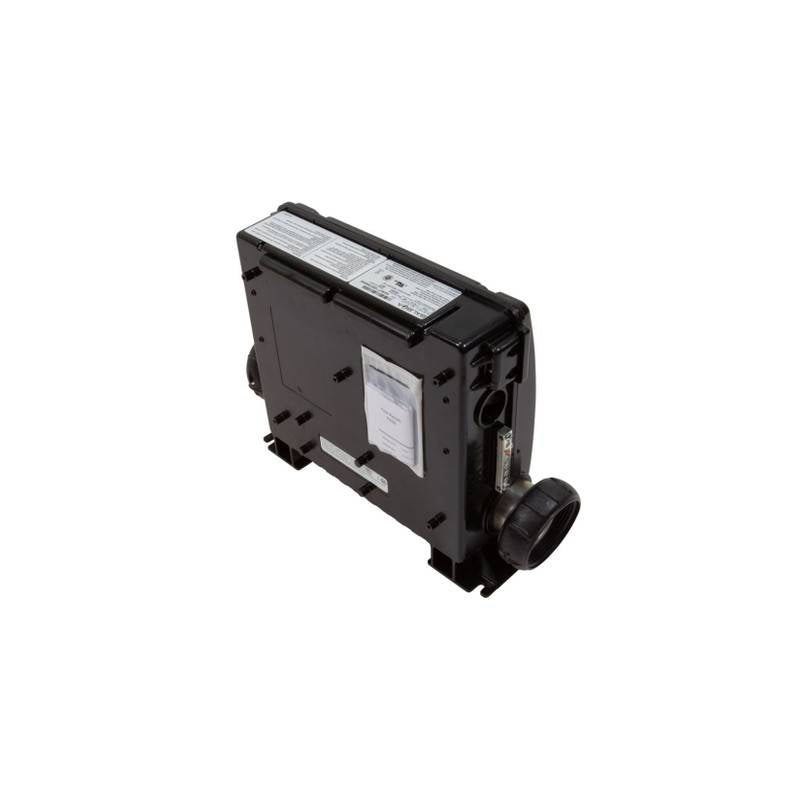

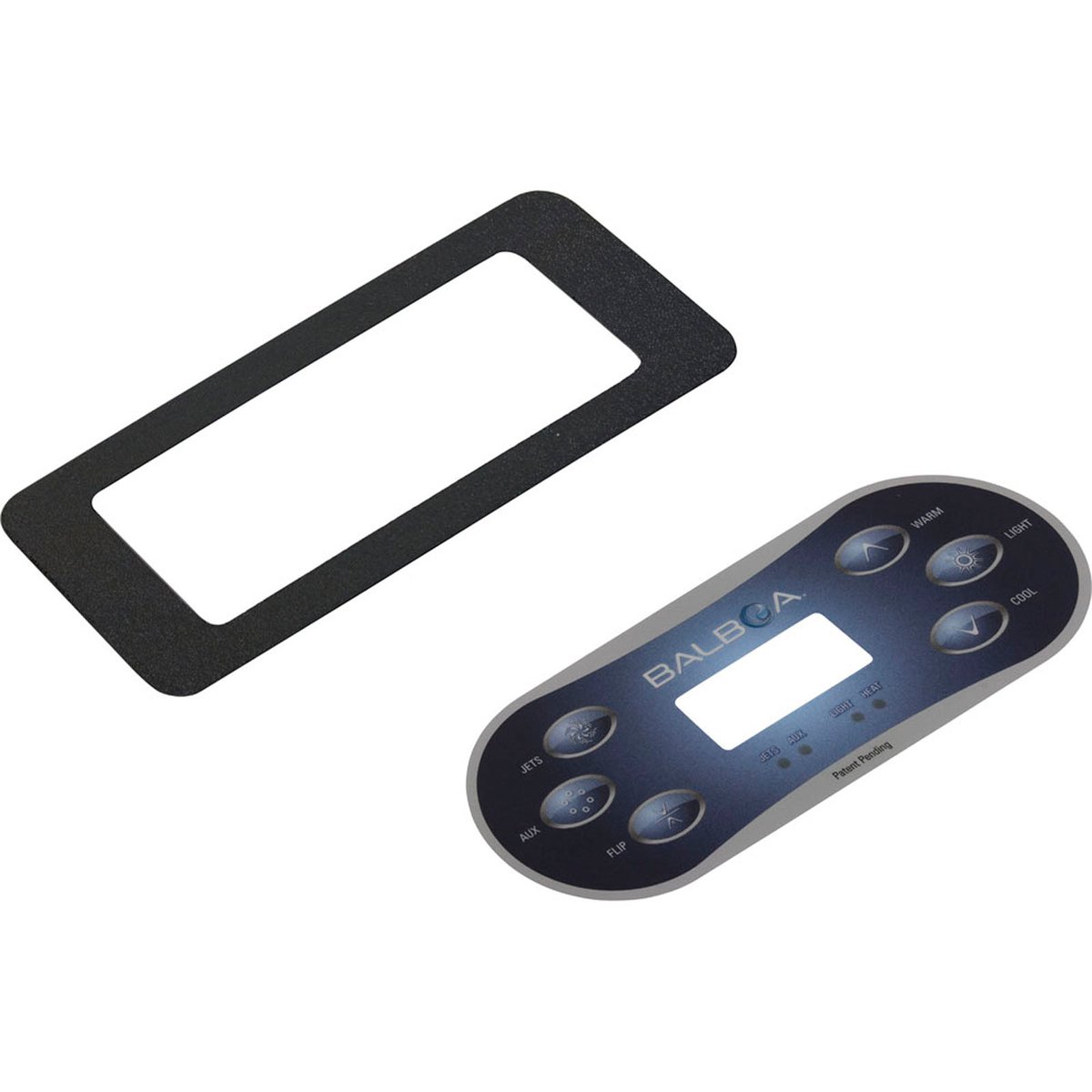

The BALBOA WATER GROUP G6406-02 BP7 Control Retrofit Kit features a 4.0kW remote heater and TP600 topside control. This system can operate up to 5 pumps, with 3 usable simultaneously, and offers 32 programmable options. It supports TP and SpaTouch topsides and is Wi-Fi capable with the addition of module 59303. The kit includes the control box, topside control panel, adapter plate, and light cord.

• Operates up to 5 pumps (3 simultaneously)
• Features 32 programmable options
• Includes TP600 topside control

Product Highlights

This retrofit kit provides comprehensive spa control with multiple pump support and programmable settings.

Product Information

Standard Information

• Brand: BALBOA WATER GROUP
• Manufacturer Part Number: G6406-02

Technical Specifications

• Manufacturer: Balboa Water Group
• Model: BP7
• Supply Voltage: 230v - 3 Wire, 230v - 4 Wire

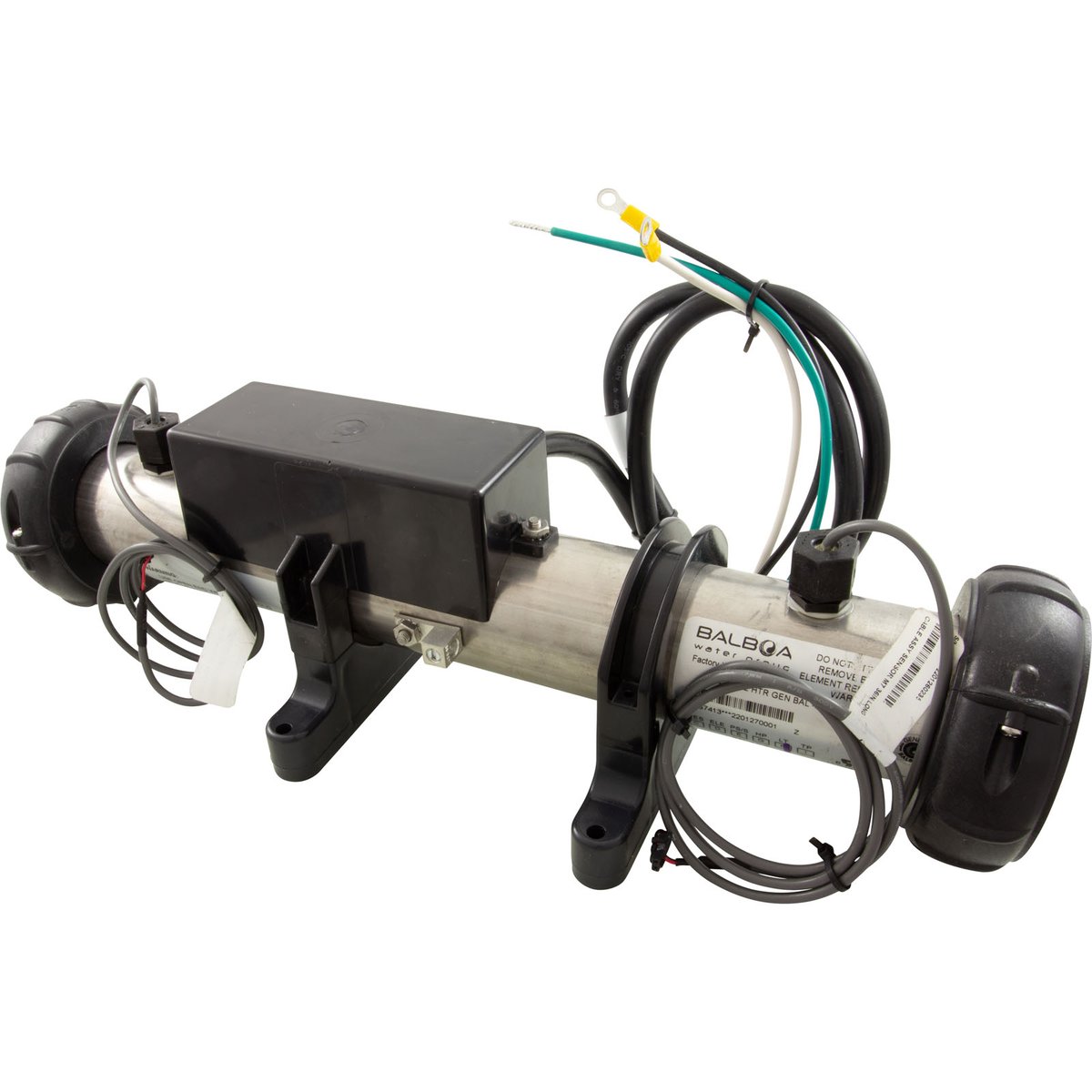

• Heater Type: Remote
• Heater Wattage: 4.0kW

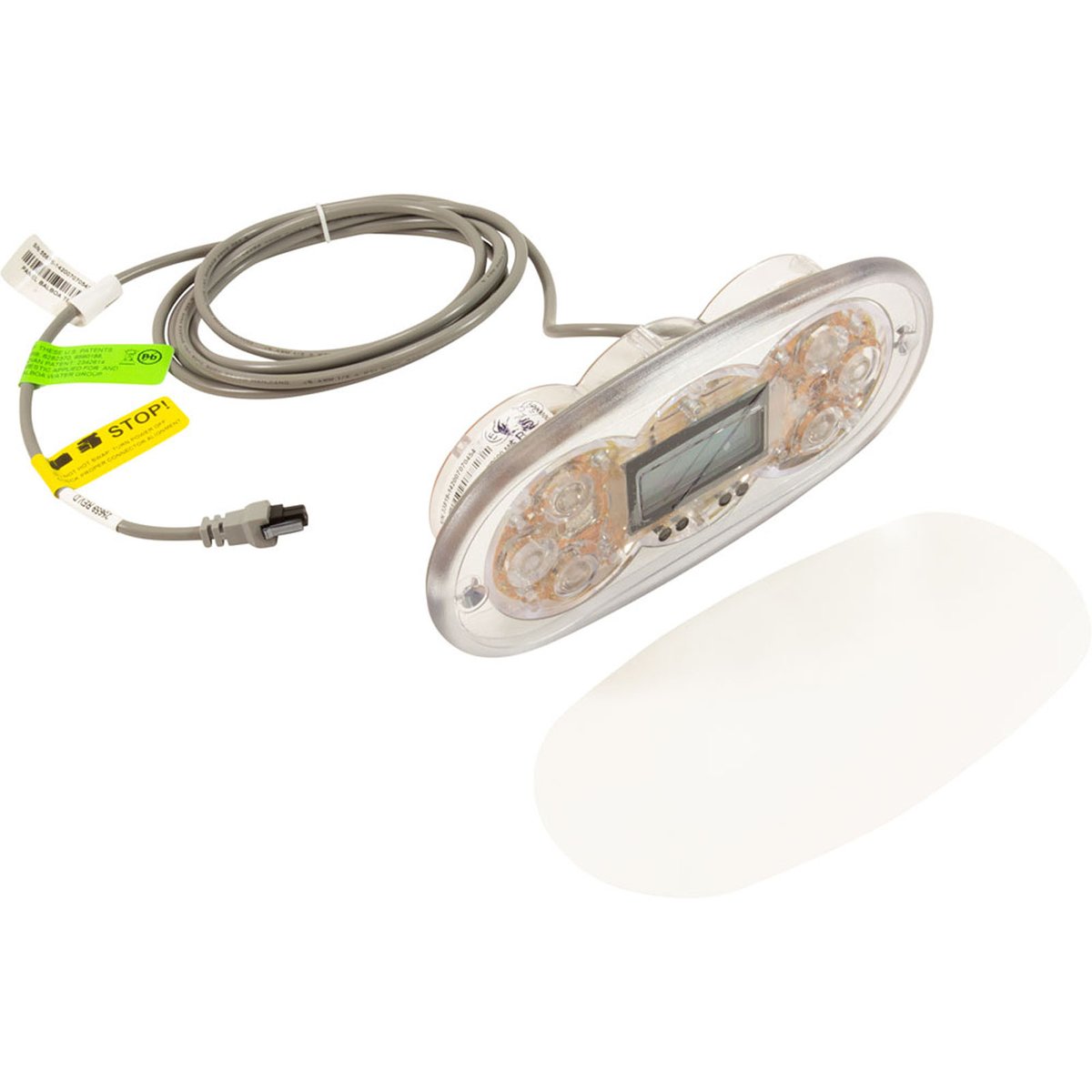

• Topside Included: TP600
• Circ Pump Ready: Optional 115v/230v
• Auxiliary Topside Ready: Yes
• Wi-Fi Compatible: Yes
• 50/60 HZ: 50Hz, 60Hz
• System Voltage: 120/240 Volts
• 3rd Circuit: 1-Speed Blower or Pump 120/240 Volts
• Component Configuration: Pump1 + Pump2/Blower + Pump3
• 2nd Circuit: 1-Speed Blower or Pump 120/240 Volts
• Main Circuit: 2-Speed Pump 120/240 Volts
• Spaside Control: Included
