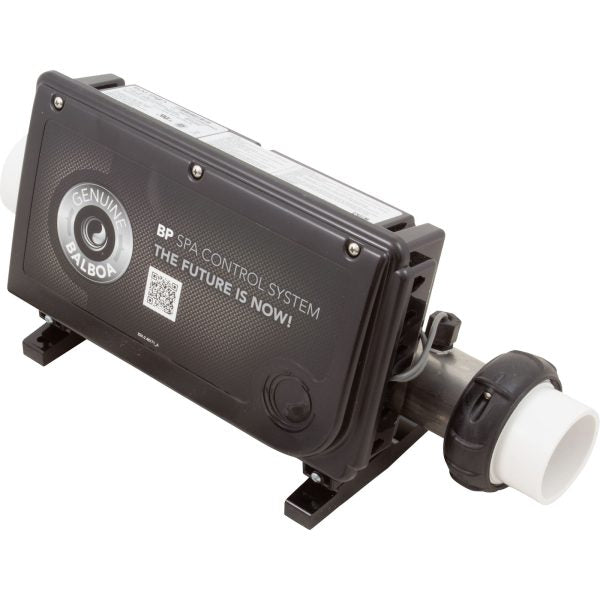

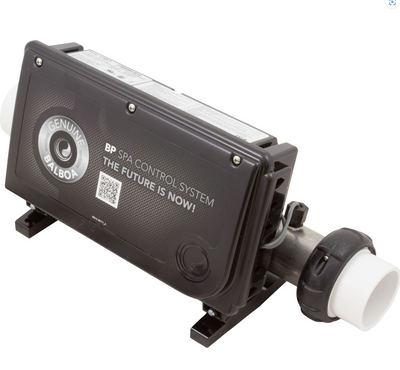

Balboa Water Group G4310-01 BP100G2 with 4.0kW Heater Control Only G4310

Product Description

The Balboa Water Group G4310-01 BP100G2 is a spa control system for residential use in North America. It features a 4.0kW heater and supports configurations for Pump1 + Blower or Pump2. This system works with Balboa's TP and SpaTouch Panels.

• Cost-effective entry-level BP System
• Constructed with quality materials, includes an integrated spa heater for straightforward installation
• Automatically detects frequency for 50Hz or 60Hz

Product Highlights

This system controls multiple functions including primary and secondary pumps, circulation, and heating systems.

Product Information

Standard Information

• Manufacturer: Balboa Water Group
• Model: BP100

Technical Specifications

• Supply Voltage: 115V, 230V - 4 Wire
• Heater Type: Fixed - Bottom
• Heater Wattage: 1.0kW, 4.0kW
• Topside Included: None
• Circ Pump Ready: Optional 115V, Optional 230V
• Wi-Fi Compatible: Yes
• 50/60 Hz Compatibility: 50Hz, 60Hz
• Heater Length: 15 inches
• Voltage Requirements: Must operate at same voltage for Pump 1, Circulation pump, Ozone system
• Protection Features: Temperature monitoring, flow protection, freeze prevention, voltage monitoring, current sensing
