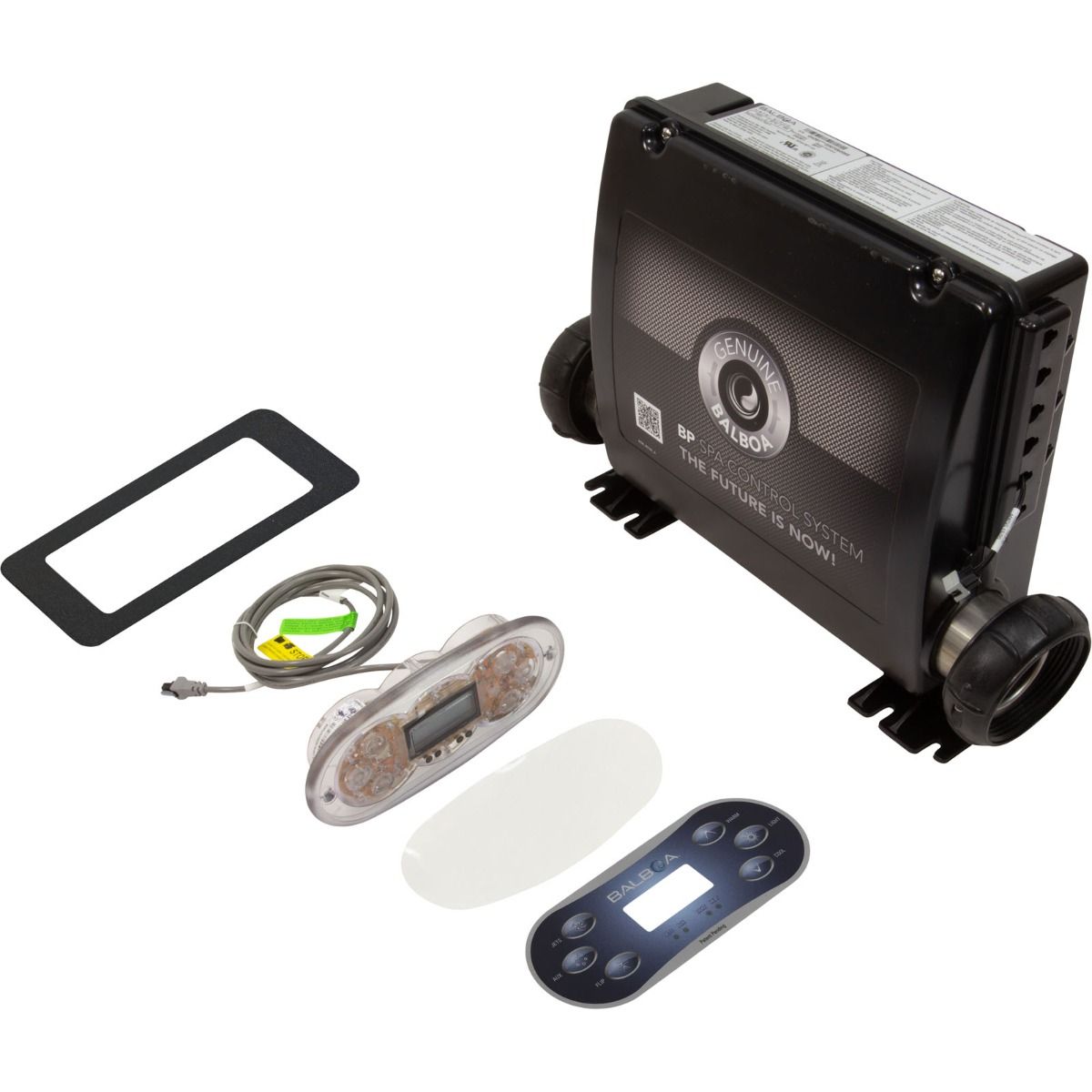

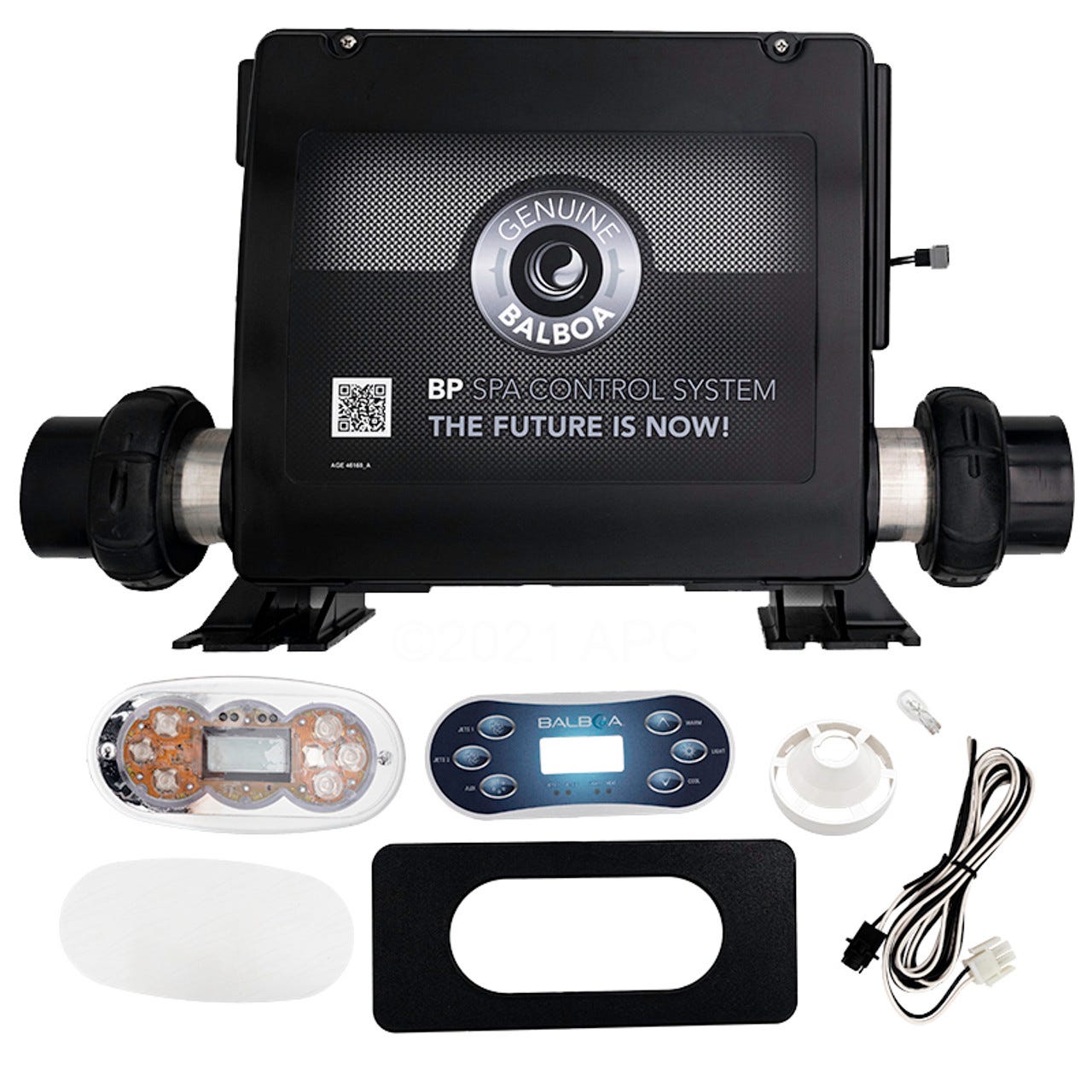

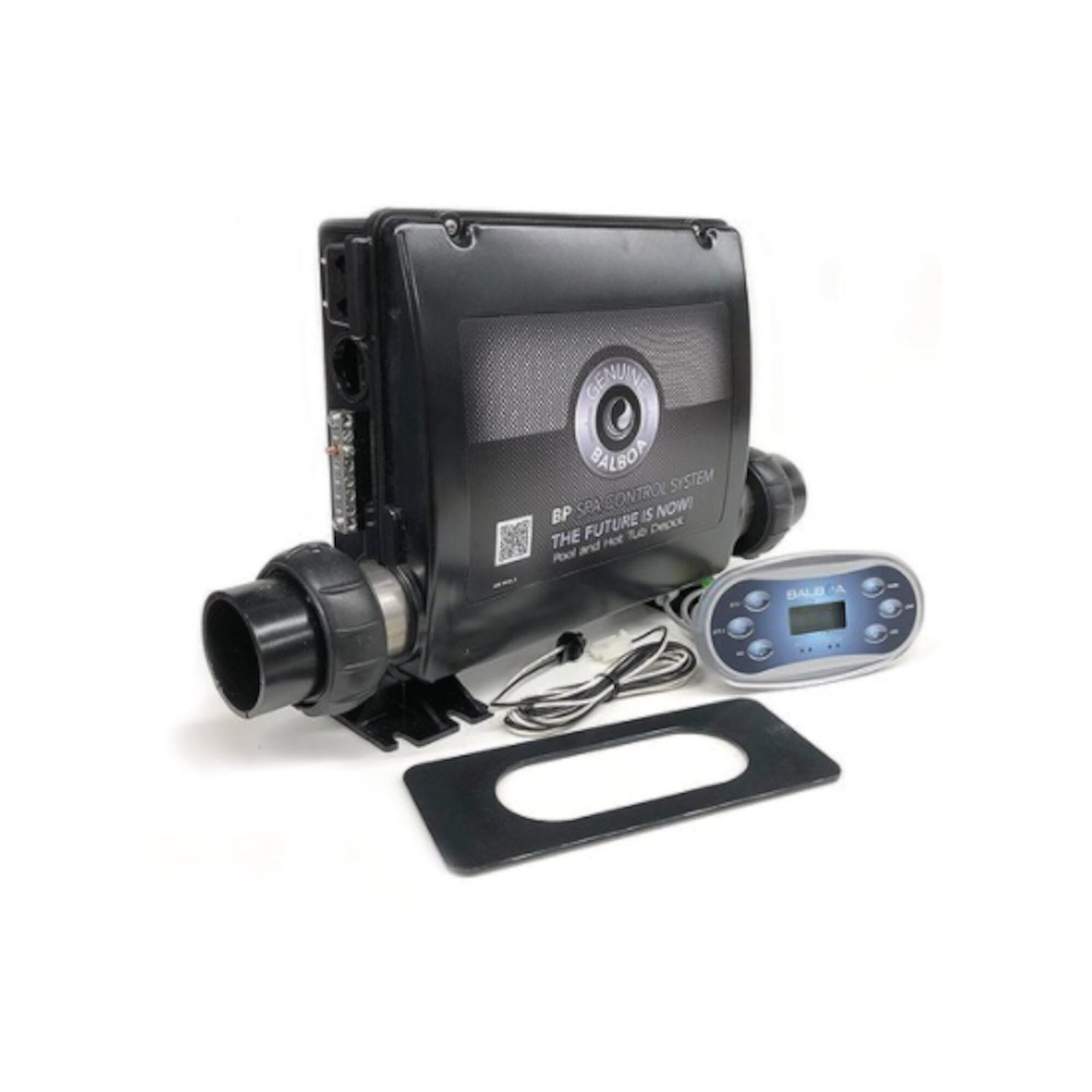

Balboa Water Group 6406 Spa Control System

Product Description

The Balboa Water Group 6406 is a spa control system designed specifically for hot tubs. This system features the BP7 control system, a TP600 topside panel, and a four kilowatt heater. It supports various pump configurations to meet different installation needs and includes a plastic enclosure for durability. The control system employs M7 temperature and flow sensor technology for accurate readings and operations.

• Supports multiple pump configurations.
• Includes TP600 topside control panel.
• Features a four kilowatt heater.

Product Highlights

This spa control system provides reliable and efficient control for hot tubs, enhancing user experience through its advanced features.

Product Information

Standard Information

• Manufacturer: Balboa Water Group
• Model: BP7

Technical Specifications

• Supply Voltage: 230 volts - 3 Wire, 230 volts - 4 Wire
• System Voltage: 120/240 volts
• Heater Wattage: 4.0 kilowatts
• Heater Type: Fixed - Bottom
• Heater Style: Straight/Fixed
• Topside Included: TP600
• Circ Pump Ready: Optional 115 volts/230 volts
• Wi-Fi Compatible: Yes
• Number Of Appliances: 3
• Heater Dimensions: 15 inches (Steel Flange to Steel Flange) - 2 inches Outside Diameter
• Spa Pack Dimensions: 11.50 inches H x 12.64 inches W x 4.80 inches D
• Control Box Height: 10-9/16 inches
• Control Box Width: 12-1/4 inches
• Control Box Depth: 4-1/2 inches
• Topside Dimensions: 7 3/8 inches wide x 3 1/4 inches tall
• Main Circuit: 2-Speed Pump 120/240 volts
• 2nd Circuit: 1-Speed Blower or Pump 120/240 volts
• 3rd Circuit: 1-Speed Blower or Pump 120/240 volts
