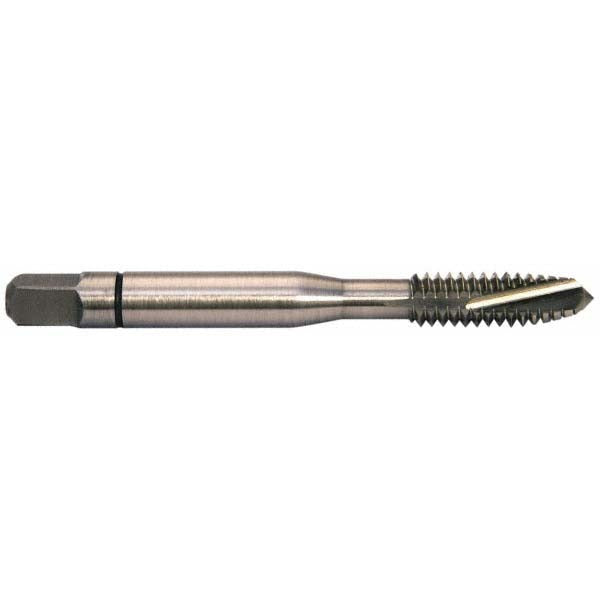

Balax 30065-000 Spiral Point Tap 10-24 Unc Plug 3 Flutes

Product Description

The BALAX 30065-000 is a spiral point tap designed to cut 10-24 UNC internal threads in through-hole applications. Built from M42 powdered metal high-speed steel, it delivers the hardness and wear resistance needed for production tapping in a wide range of materials. The plug chamfer provides a gradual lead-in over several threads, making it suitable for most general-purpose through-hole tapping work. With 3 flutes and a right-hand thread direction, the tap pushes chips forward ahead of the cutting action rather than packing them behind, reducing the risk of tap breakage in standard machine tapping setups. The bright uncoated finish works well across multiple material types without adding coating buildup to the thread form.

This tap is used in machine shop, manufacturing, and maintenance applications where 10-24 UNC threads are required in through-holes. It is well suited for CNC machining centers, drill presses, and tapping machines. Compatible materials include aluminum, brass, bronze, carbon steel, copper, magnesium, stainless steel, wrought aluminum alloy, and zinc, making it a versatile choice for mixed-material production environments.

Key Features

• M42 powdered metal HSS construction for enhanced hardness and tool life
• Spiral point geometry pushes chips forward, reducing clogging in through-hole tapping
• Plug chamfer for gradual thread engagement in standard through-hole applications
• Right-hand cut, 3-flute design for balanced cutting action
• Bright uncoated finish compatible with a broad range of workpiece materials
• H5 thread limit for controlled oversize tolerance suitable for plated or close-tolerance threads

Compatibility

Designed for through-hole tapping of 10-24 UNC threads in aluminum, brass, bronze, carbon steel, copper, magnesium, stainless steel, wrought aluminum alloy, and zinc workpieces. Part of the BALAX BX100 series.

Installation Notes

This tap is intended for use by machinists and toolroom professionals on machine tapping equipment. Always ensure the spindle is fully stopped and the machine is in a safe state before loading or removing taps from holders. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain thread quality. Follow ANSI and shop safety standards for tapping speeds and feeds based on material hardness and hole depth.
