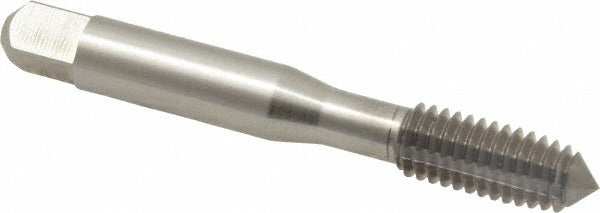

Balax 13465-000 Thread Forming Tap 3/8-16 Unc Plug Hss

Product Description

The BALAX 13465-000 is a thread forming tap designed for through-hole threading applications in metalworking and manufacturing. Unlike cutting taps, thread forming taps displace material rather than remove it, producing stronger threads with no chips to clear. This plug-style tap is manufactured from high-speed steel with a bright uncoated finish and carries a H5 thread limit, making it well-suited for producing 3/8-16 UNC right-hand internal threads in ductile materials. At 2.9375 inches overall length with a 0.9500-inch thread length, it fits standard tap holders used in production and job-shop environments. Machinists and tool-and-die technicians are the primary users.

This tap is used in through-hole applications where a clean, chipless thread form is required. The plug chamfer, with 4 chamfered threads, allows the tap to start easily in a pre-drilled hole and progress smoothly through the material. It is appropriate for use in both manual tapping setups and CNC tapping cycles. The BXP series designation indicates it is suited for forming threads in soft to medium-hardness ductile metals, including aluminum, brass, and mild steel, where material flow rather than cutting is the preferred method.

Key Features

• Thread forming (chipless) design produces stronger threads and eliminates chip evacuation concerns
• 3/8-16 UNC right-hand thread form with H5 thread limit for consistent tolerance control
• Plug chamfer with 4 chamfered threads for reliable starting in through-holes
• High-speed steel construction provides durability across a range of ductile materials
• Bright uncoated finish suitable for use with standard tapping fluids and cutting oils
• Single oil groove supports lubrication flow during the forming operation

Compatibility

Designed for through-hole threading in ductile materials requiring a 3/8-16 UNC internal thread. Compatible with standard tap holders and collets sized for a 0.3810-inch shank diameter and a 0.2860-inch square drive.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with thread forming operations. Ensure the workpiece is properly fixtured and the pre-drilled hole diameter is correct for thread forming, as forming taps require a larger pilot hole than cutting taps of the same size. Apply an appropriate tapping fluid or cutting oil before and during the operation to reduce heat and extend tap life. Power down or disengage the machine spindle before loading or removing the tap from the holder.
