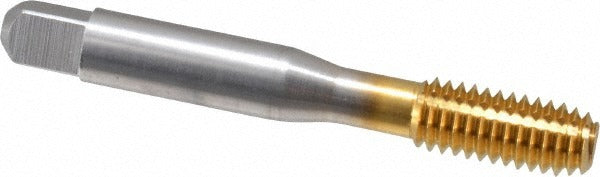

Balax 13447-01T Thread Forming Tap 3/8-16 Unc Bottoming Tin

Product Description

The BALAX 13447-01T is a thread forming tap designed for producing internal threads in ductile materials without cutting. It operates by cold-forming the thread profile, displacing material rather than removing chips, which produces stronger threads with a burnished finish. Built from high-speed steel (HSS) with a titanium nitride (TiN) coating, this bottoming tap is suited for threading close to the bottom of blind holes. The TiN coating reduces friction and extends tool life in production environments. It carries a Class of Fit of 2B and 3B with a Thread Limit of H7, giving machinists reliable dimensional control on threaded features.

This tap is rated for blind hole threading applications in ferrous and non-ferrous ductile materials where chip removal is a concern. The bottoming chamfer, with 2.5 chamfered threads, allows threading to within a minimal distance from the bottom of a drilled hole. It is used in machine shops, manufacturing facilities, and maintenance environments where precise internal threads are required in workpieces that cannot accept a through-hole configuration. Series BXB designation applies.

Key Features

• Thread forming design eliminates chips, reducing recutting and tap breakage risk in blind holes
• TiN coating reduces friction and extends tool life compared to uncoated HSS taps
• Bottoming chamfer (2.5 chamfered threads) allows threading near the bottom of blind holes
• H7 thread limit provides consistent Class 2B and 3B fit tolerance control
• Right-hand thread direction, standard for most tapping applications
• Single oil groove supports lubrication delivery during the forming process

Compatibility

Designed for blind hole threading of 3/8-16 UNC internal threads in ductile materials. Compatible with standard tapping chucks and holders accepting a 0.381-inch shank diameter with a 0.286-inch square drive.

Installation Notes

Thread forming taps require adequate lubrication or cutting fluid appropriate for the workpiece material. Machinists should use a properly sized drill and verify the drill diameter matches the recommended forming tap pilot hole chart for 3/8-16 UNC before tapping. Ensure the tap is driven at the correct RPM and with a synchronized or floating holder to prevent thread damage or tap breakage. Always secure the workpiece and de-energize any powered equipment before mounting or changing tooling.
