Balax 13305-010 Thread Forming Tap 5/16-24 Unf Bottoming

Product Description

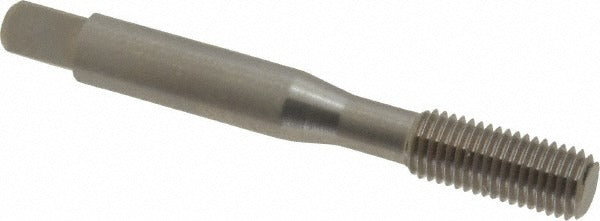

The BALAX 13305-010 is a thread forming tap designed for blind hole threading in 5/16-24 UNF applications. Unlike cutting taps, thread forming taps cold-form internal threads by displacing material rather than cutting chips, producing stronger threads with a burnished finish. This tap is built from high-speed steel with a bright, uncoated finish and features a bottoming chamfer of 1.5 threads, allowing it to form threads close to the bottom of a blind hole. With an H5 thread limit and Class 3B fit, it delivers tight, controlled thread geometry suited for precision fastener applications. Machinists and tool and die technicians rely on this style of tap in production and repair settings where thread quality and hole cleanliness are critical.

The BALAX 13305-010 is suited for blind hole threading operations on ductile and malleable materials such as aluminum, mild steel, brass, and similar metals that can accommodate cold-forming. The bottoming chamfer makes it the right choice when threading must extend as close to the bottom of a hole as possible. At 2.7188 inches overall length with a thread length of 0.88 inches and a tapping depth of 1.125 inches, it fits standard toolholders and tap wrenches used in bench and machine setups. It carries the BXOTL series designation from BALAX.

Key Features

• Bottoming chamfer with 1.5 chamfered threads for threading close to the bottom of blind holes
• H5 thread limit with Class 3B fit for precision thread geometry
• High-speed steel construction for durability across a range of ductile workpiece materials
• Cold-forming action produces chip-free threads and stronger thread walls compared to cut taps
• Single oil groove design aids lubrication during the forming process
• Right-hand thread direction, 5/16-24 UNF standard

Compatibility

Designed as an OEM-style thread forming tap for blind hole applications requiring a 5/16-24 UNF internal thread with a Class 3B fit.

Installation Notes

Thread forming taps require a larger pilot hole diameter than cutting taps - consult the appropriate form tap drill chart for the correct hole size before tapping. Always apply a thread forming lubricant or cutting oil rated for the workpiece material. Secure the workpiece fully before tapping and maintain axial alignment to avoid tap breakage. Follow your shop or facility safety guidelines when operating tapping equipment.
