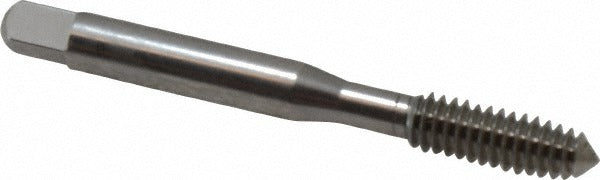

Balax 12667-000 Thread Forming Tap 1/4-20 Unc Plug Hss

Product Description

The BALAX 12667-000 is a thread forming tap designed for right-hand, through-hole threading in ductile materials. It cuts no chips - instead, it cold-forms the thread profile by displacing material, producing a stronger thread form with tighter tolerances. Built from high-speed steel with a bright uncoated finish, it is rated for 1/4-20 UNC threads at a 2B class of fit with an H7 thread limit. The plug chamfer geometry, with 4 chamfered threads, provides a balance of lead-in ease and threading depth suitable for most standard through-hole applications. Overall length is 2.5 inches with a tapping depth of 1.0 inch.

This tap is suited for production and maintenance threading operations in metalworking, HVAC bracket fabrication, electrical enclosure assembly, and light structural work where 1/4-20 UNC threaded holes are required in through-hole configurations. The BXP series design is intended for use in materials that form rather than cut cleanly, such as low-carbon steels, aluminum, and similar ductile alloys. It is used by machinists, maintenance technicians, and trade professionals requiring consistent thread quality in moderate-volume applications.

Key Features

• Thread forming design displaces material instead of cutting, producing stronger threads with no chips
• 1/4-20 UNC right-hand thread, 2B class of fit with H7 thread limit
• Plug chamfer with 4 chamfered threads for controlled lead-in in through-hole applications
• High-speed steel construction for durability in moderate-speed tapping operations
• Bright uncoated finish suitable for use with standard tapping fluids and cutting oils
• 1 oil groove supports lubrication flow during forming

Compatibility

Designed as an OEM-style replacement or direct-use thread forming tap for 1/4-20 UNC through-hole applications in standard tapping chucks and holders accepting a 0.255 inch shank diameter with a 0.191 inch square drive.

Installation Notes

Thread forming taps require a properly sized forming tap drill - use the correct drill diameter for 1/4-20 UNC form tapping, which differs from standard cut tap drill sizes. Apply a suitable tapping fluid or cutting oil before and during the tapping operation to reduce forming torque and extend tap life. Secure the workpiece and ensure the tap enters perpendicular to the drilled hole to prevent thread misalignment or tap breakage. This tap is not suitable for brittle materials such as cast iron or hardened steel.
