Balax 02310-000 Thread Forming Pipe Tap 1/4-18 Nptf Hss

Product Description

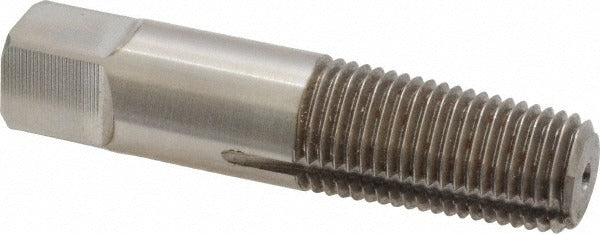

The BALAX 02310-000 is a thread forming pipe tap designed for cutting NPTF-standard internal threads in pipe and fitting applications. Unlike cutting taps, this forming tap displaces material rather than removing chips, producing stronger threads with a superior surface finish. It is manufactured from high-speed steel with a bright finish and is sized for 1/4-18 NPTF thread engagement. The overall length is 2-7/16 inches, with a thread length of 1-1/16 inches and a 9/16-inch shank diameter. Licensed plumbers, pipefitters, and mechanical contractors use this tap when forming leak-resistant pipe threads in ductile materials.

This tap is suited for residential and light commercial piping work where NPTF-standard tapered pipe threads are required. It is particularly well-matched to softer, ductile workpiece materials such as aluminum and copper, where thread forming produces clean, chip-free results. Typical installation scenarios include threaded fittings, manifold blocks, and pipe nipple connections where a strong, pressure-rated thread form is critical. The BXPT series designation indicates compatibility with standard pipe tap driver tooling and tap wrenches sized for the 7/16-inch square drive.

Key Features

• Thread forming design displaces material instead of cutting, eliminating chips and producing stronger threads
• 1/4-18 NPTF thread standard for tapered pipe thread applications
• High-speed steel construction provides durability across repeated use cycles
• Bright finish suitable for use with appropriate tapping lubricants on aluminum and copper
• BXPT series with 0.421-inch square drive for standard tap wrench compatibility
• Compact overall length of 2-7/16 inches for use in tight or confined pipe locations

Compatibility

Rated for material applications in aluminum and copper. Designed as a thread forming replacement tap for 1/4-18 NPTF pipe thread applications in plumbing and pipefitting work where chip-free thread generation is required.

Installation Notes

Thread forming taps should be installed by a qualified plumber or pipefitter using a properly sized tap wrench or tapping fixture. Always apply an appropriate tapping fluid or cutting oil formulated for the workpiece material before forming threads. Ensure the tap is aligned perpendicular to the work surface before applying torque to prevent thread distortion or tap breakage. Follow applicable plumbing codes, including IPC and IFGC references, for approved thread standards on pressure-rated pipe connections.
