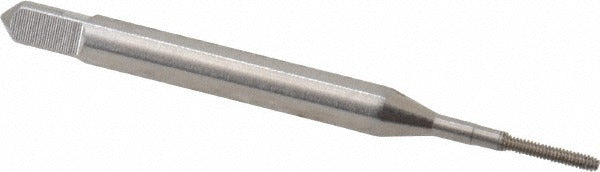

Balax 01202-010 Thread Forming Tap M1.1x0.25 Bottoming Hss

Product Description

The BALAX 01202-010 is a thread forming tap designed for cutting M1.1x0.25 metric coarse internal threads in blind holes. Unlike cutting taps, thread forming taps displace material rather than remove chips, producing stronger threads with a burnished finish. This tap features a bottoming chamfer with 2.5 chamfered threads, allowing it to thread close to the bottom of a blind hole. It is manufactured from high-speed steel with a bright, uncoated finish and carries a Thread Limit of H2. Machinists and tool-and-die professionals use this tap in precision applications where small-diameter metric threads are required in ductile materials.

This tap is suited for blind hole threading operations on small components in industries such as electronics, medical device manufacturing, instrument assembly, and precision machining. The bottoming chamfer design makes it appropriate as a finishing tap following a plug or taper tap when full thread depth near the bottom of a blind hole is required. The BXMIN series is built for miniature thread forming applications where tight tolerances and thread integrity are critical.

Key Features

• Thread forming design displaces material rather than cutting chips, producing stronger, work-hardened threads
• Bottoming chamfer with 2.5 chamfered threads allows threading to near the base of blind holes
• High-speed steel construction provides durability across a range of ductile workpiece materials
• Bright, uncoated finish suitable for use with appropriate tapping fluids or cutting oils
• H2 thread limit for close tolerance metric thread production
• Right-hand thread direction, zero oil grooves - appropriate for low-viscosity or through-coolant-free setups

Compatibility

Designed for blind hole thread forming operations producing M1.1x0.25 metric coarse internal threads in ductile materials. Fits standard tap holders and collets accepting a 0.141-inch (3.58 mm) shank diameter with a 0.110-inch (2.79 mm) square drive.

Installation Notes

Thread forming taps require a properly sized forming tap drill - do not use a standard cut tap drill chart for this operation, as forming taps require a larger pilot hole than cutting taps. Secure the workpiece firmly and apply appropriate tapping fluid before operation. When using in a machine setup, ensure the tap holder provides adequate float to prevent tap breakage on this small diameter. Always confirm spindle speed and feed rate are appropriate for the workpiece material and tap diameter before engaging.
