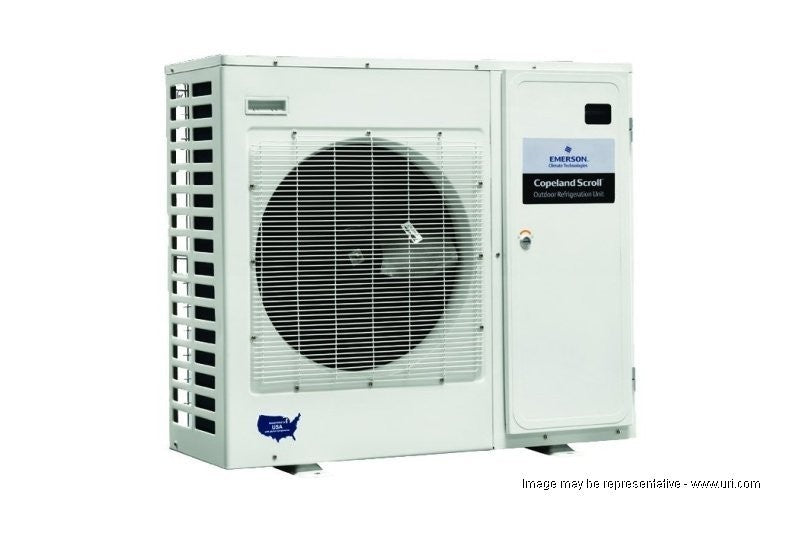

BAKER DISTRIBUTING CO XFAM-017Z-TFC-081 Air Cooled Condensing Unit

Product Description

The BAKER DISTRIBUTING CO Copeland XFAM017ZTFC081 is an air-cooled condensing unit suitable for outdoor refrigeration. This unit functions in medium-temperature environments and features a scroll compressor for efficient operation. It supports multiple refrigerants including R22, R134a, R404A, R407A, and R407C. The operating voltage is 208-230/3/60 and it includes a receiver for easier installation.

• Scroll compressor for efficient operation.
• Multi-refrigerant capability for flexibility.
• Includes pre-painted enclosures for corrosion protection.

Product Highlights

Designed for reliable performance in outdoor settings with advanced features for ease of use and maintenance.

Product Information

Standard Information

• Country of Origin: USA
• Weight: 219.00 lbs.

Technical Specifications

• Application: Medium Temp
• Compressor: ZS11KAE-TF5
• Horsepower: 1 1/2
• Voltage: 208/230-3-60
• Refrigerants Supported: R22, R134a, R404A, R407A, R407C
• Connection Liquid (In.): 1/2
• Connection Suction (In.): 7/8
• Maximum Fuse / Breaker Size (Amps): 20
• MCA (Amps): 14.05
• Oil Type: Polyol Ester
• Receiver Included: Yes
