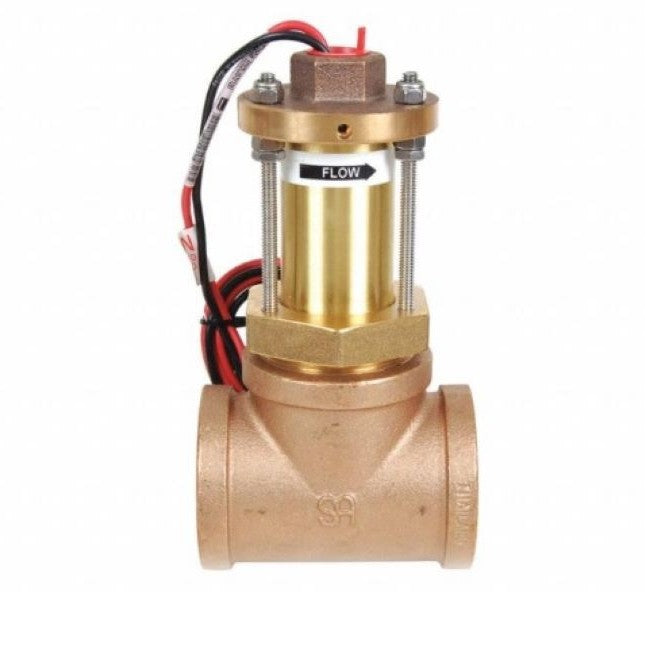

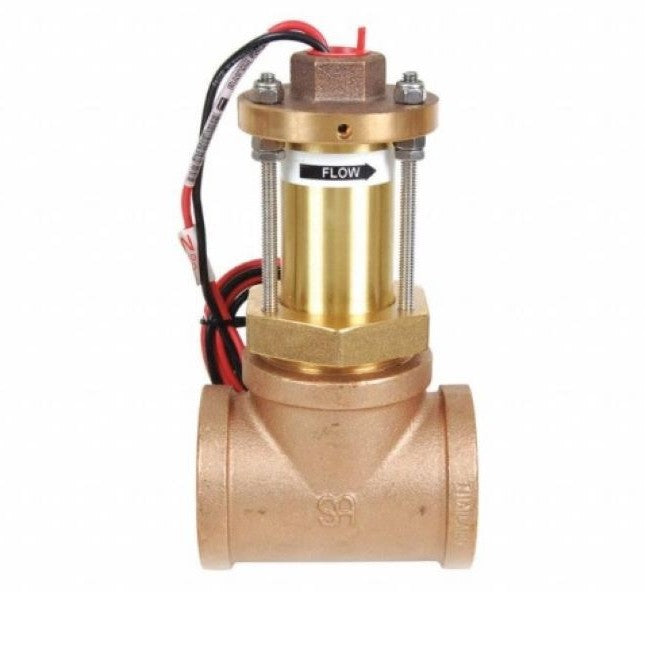

Badger Meter 228BR2005-1211 Inline Flow Meter 2 in Brass

Product Description

The BADGER METER 228BR2005-1211 is a 2-inch brass tee-style inline flow meter designed to measure liquid flow rates in threaded piping systems. It delivers an accuracy rating of 1 percent, making it suitable for applications where reliable flow data is required. Rated to a maximum pressure of 200 psi and a maximum temperature of 221 degrees F, this sensor handles demanding conditions found in commercial and industrial fluid systems. Licensed plumbers and mechanical contractors are the primary installers, integrating this device directly into a threaded pipe run for continuous flow monitoring.

This inline flow sensor is suited for use in water distribution, hydronic heating and cooling systems, and other liquid-handling applications where flow measurement is required. The tee-body design allows installation into an existing 2-inch threaded pipe line without major system modification. It is appropriate for both new construction and retrofit service work where accurate flow data is needed at a specific monitoring point.

Key Features

• 1 percent accuracy rating for reliable flow measurement
• Brass tee body construction provides corrosion resistance in water-based systems
• Threaded connection simplifies installation into standard 2-inch pipe runs
• Maximum pressure rating of 200 psi supports use in pressurized systems
• Maximum temperature rating of 221 degrees F suitable for hot water and hydronic applications

Compatibility

Designed as an OEM-style inline flow measurement device for 2-inch threaded piping systems in commercial and residential mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line completely before cutting into the existing pipe run. Use appropriate thread sealant on all threaded connections and verify no leaks are present before returning the system to service. Observe the flow direction markings on the sensor body to ensure correct orientation in the pipe.

Technical Specifications

• Size: 2 inches
• Connection Type: Threaded
• Type: Inline Flow Meter
• Accuracy: 1 percent
• Maximum Pressure: 200 psi
• Maximum Temperature: 221 degrees F
• Material: Brass

Standard Information

• Brand: BADGER METER
• Manufacturer Part Number: 228BR2005-1211
