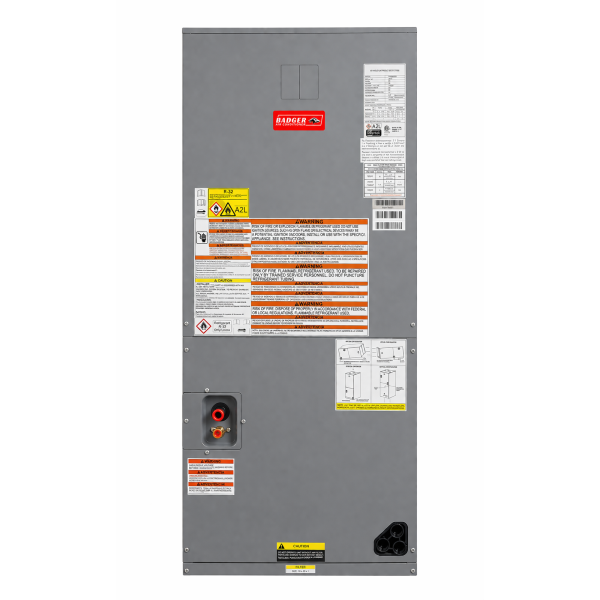

Badger d4ah4p24e1b00b 2 Ton R32 Air Handler 8kw

Product Description

The BADGER d4ah4p24e1b00b is a 2-ton, multi-position air handler designed for use with R-32 refrigerant in residential HVAC systems. It features a high-efficiency ECM motor that modulates airflow in response to system demand, reducing energy consumption during partial-load operation. The unit ships with a factory-installed 8 kilowatt (kW) electric heat kit, providing supplemental heat without a separate field-installed strip heater. An all-aluminum evaporator coil and a built-in TXV round out the refrigerant-side components. Licensed HVAC technicians handling R-32 systems should note that this refrigerant requires A2L-rated equipment and procedures.

This air handler is suited for residential and light-commercial new construction and replacement applications where installation orientation may vary. The multi-position cabinet supports upflow, downflow, and horizontal configurations, giving installing contractors flexibility when working with existing ductwork layouts or tight mechanical spaces. It is intended for use with matched R-32 condensing equipment. Fully insulated cabinet construction and low air leakage design support system efficiency across all installation orientations.

Key Features

• Multi-position installation: upflow, downflow, and horizontal configurations supported
• ECM motor automatically adjusts airflow to match system demand
• Factory-installed 8 kW electric heat kit included
• All-aluminum evaporator coil for corrosion resistance and durability
• Built-in TXV for precise refrigerant metering
• Fully insulated cabinet with low air leakage construction
• Designed for R-32 refrigerant systems

Compatibility

Designed as an OEM-style multi-position air handler for residential R-32 split-system applications. Specific compatible condensing unit model numbers were not provided in the product data; consult BADGER system matching guidelines before pairing with outdoor equipment.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician familiar with A2L refrigerant handling requirements for R-32 systems. Disconnect and lock out all electrical power before servicing or wiring the unit. Follow local mechanical and electrical codes, including applicable NEC requirements for the electric heat kit circuit sizing and disconnect placement. Do not pressurize or charge the refrigerant circuit until all connections are leak-tested and the system is properly evacuated.

Technical Specifications

• Cooling Capacity: 2 tons
• Refrigerant Type: R-32
• Electric Heat Kit: 8 kW (factory installed)
• Motor Type: ECM
• Evaporator Coil Material: All-aluminum
• Metering Device: TXV (factory installed)
• Installation Positions: Upflow, Downflow, Horizontal

Standard Information

• Brand: BADGER
• Manufacturer Part Number: d4ah4p24e1b00b
