Product Description

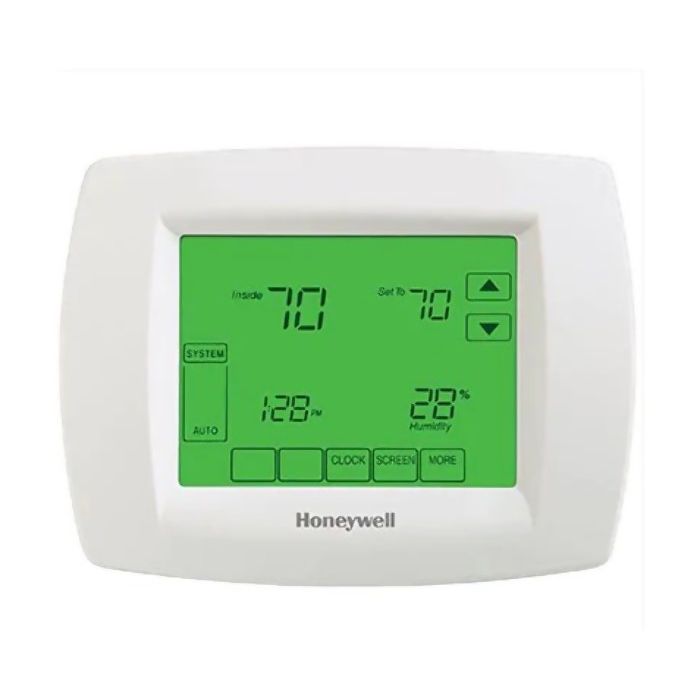

The Honeywell TB3026B BACnet Fixed Function Thermostat offers superior control for heating and cooling systems. Engineered for commercial use, this thermostat ensures precise temperature management. It's ideal for fan coil units, heat pumps, and rooftop systems.
- Advanced BACnet communication protocol
- Three universal inputs, two analog outputs, and six relay outputs
- Integrated temperature and humidity sensors
Product Highlights
The Honeywell TB3026B BACnet Thermostat enables seamless integration with building management systems. It provides remote control and monitoring for efficient energy management. The thermostat features programmable setpoint schedules and occupancy detection for optimal energy usage.
Product Information
Standard Information
-
Brand: Honeywell
-
MPN: TB3026B
-
Category: Hydronics, HVAC, & Refrigeration
Technical Specifications
-
Application: Fan Coil, Roof Top, Heat Pump
-
Dimensions: 4.625 inches Height, 6.032 inches Width
-
Screen Dimensions: 3.5 inches Height, 4.5 inches Width
-
Supply Voltage: 20 to 30 Vac
-
Frequency: 50 Hz, 60 Hz
-
Operating Temperature Range: 0 F to 120 F
-
Humidity Range: 5 to 95 percent RH, non-condensing
-
Mounting: Horizontal on a wall plate or 2 x 4 wiring box
-
Weight: 0.95 lbs
-
BACnet compliance: MS/TP LAN at up to 76.8 Kbps
-
Connections: Screw terminals
-
Stages: Up to 2 Aux Heat/1 Comp Heat Pumps; Up to 2 Heat/2 Cool Systems, 1 Heat/1 Cool Fan Coil Units
