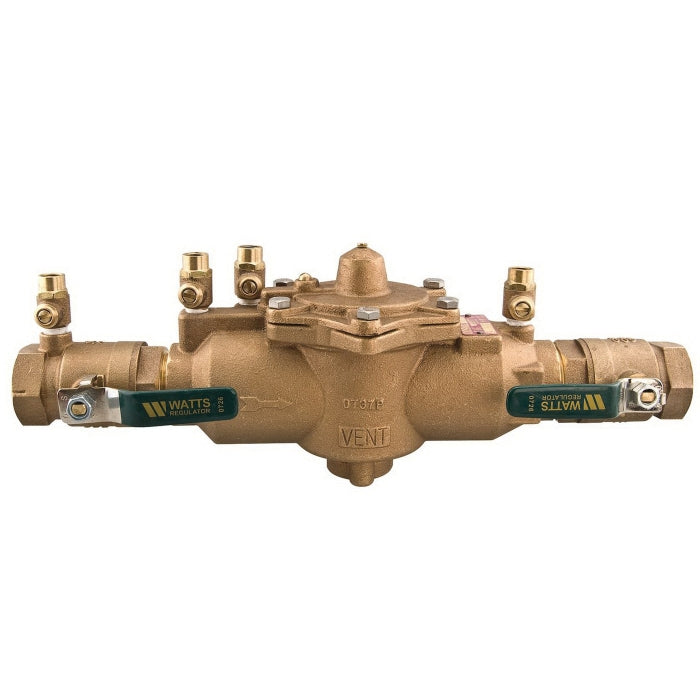

Watts 0391007 009M2QT 2 Inch Backflow Preventer Reduced Pressure Zone Assembly

Product Description

The Watts 2 Inch Backflow Preventer model 0391007 is a lead-free, reduced pressure zone assembly specifically constructed to prevent polluted water from entering potable water supplies due to backsiphonage or backpressure. This assembly adheres to stringent national plumbing codes and water authority requirements.

• Designed for continuous pressure piping applications and identified health hazard cross-connections.
• Features a cast bronze body with FNPT end connections and a quarter turn ball valve shut-off.
• Capable of handling pressures up to 175 psi and temperatures from 33 to 180 degrees Fahrenheit.

Product Highlights

Constructed from cast bronze, this Watts Backflow Preventer ensures durability and reliable performance. It includes an easy maintenance design with a top-entry cover that allows quick access to internal components. Its compact form factor with internal relief valve allows for minimal installation space.

Technical Specifications

• Connection Type: FNPT
• Pressure Rating: 175 psi
• Temperature Tolerance: 33 to 180 degrees Fahrenheit
• Dimension: 21-3/8 inches Length x 7-3/4 inches Height
• Material: Cast Bronze, Silicone Disc, Engineered Plastic Seat
• Model: LF009M2-QT
• Certifications: ASSE 1013, AWWA C511, CSA B64.4, IAPMO 1563, ANSI/NSF 61G, UL listed, USC, UPC approved
