Product Description

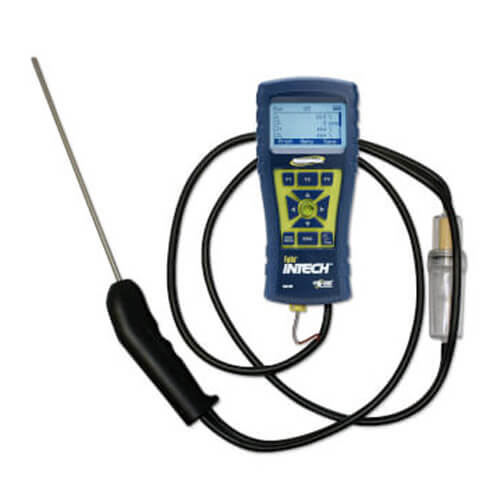

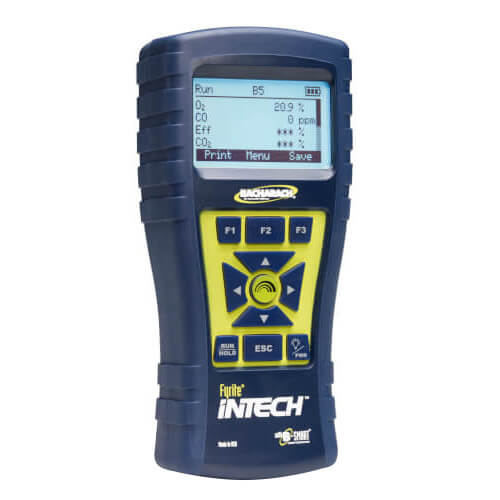

The Bacharach 0024-8512 Fyrite InTech is designed for entry-level and residential technicians to ensure safe operating conditions and determine combustion efficiency. It features sensors for O2 and CO, with an option for an external NOx filter. The CO sensor can be replaced in the field using B-Smart pre-calibrated sensors. It calculates efficiency, CO2 and CO air-free.
- Readings for O2, CO, CO2, combustion efficiency and temperature
- Field replaceable, B-Smart pre-calibrated CO sensor
- Smartphone App for custom reports
Product Highlights
This combustion analyzer delivers quick, accurate measurement of oxygen, carbon monoxide, and ambient air temperatures. It is equipped with O2 and CO sensors.
Product Information
Standard Information
-
Brand: BACHARACH
-
Manufacturer Part Number: 0024-8512
-
Country of Origin: United States
Technical Specifications
-
Fuel Types: Natural gas, oil 2, propane
-

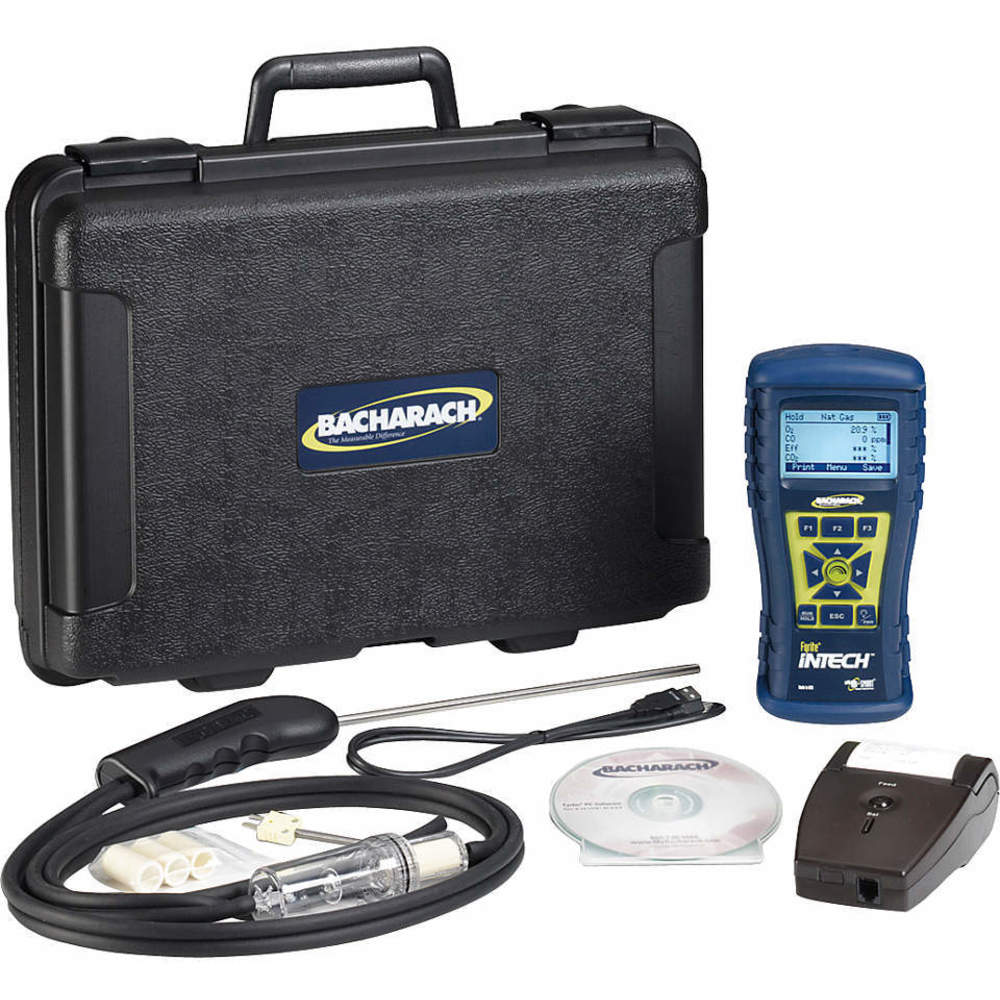

Includes: Sensors for O2 and CO, Protective Case, Reporting Kit (Irda Wireless Printer, USB Cable And Fyrite User Software), option for an external NOx filter, 8 Aa Batteries, Hard Carry Case, Printer, Probe, Rubber Boot, Spare Filters, Usb Cable, User Manual, User Software
-
Application: Combustion tuning
-
CO Sensor: Field replaceable, B-Smart® pre-calibrated
-
Item: Combustion Analyzer Kit
-
Type: InTech Residential
-
Display: High Contrast LCD Display With Backlighting
-
Excess Air: (0 to 250%)
-
Stack Temp.: -4 Degrees to 1202 Degrees F
-
Battery Type: (4) AA Alkaline
-
Display Type: Backlit Digital
-
Product Type: Combustion Analyzer Kit
-
Analyzer Type: Residential
-
Oxygen Concentration: 0.0% to 20.9%
-
Combustion Efficiency: 0.1 to 100%
-
Primary/Ambient Air Temp.: -4 Degrees to 212 Degrees F
-
Carbon Dioxide Concentration: 0.1 To A Fuel Dependent Maximum (in %)
-
Manufacturers Warranty Length: Instrument and Co Sensor 2 yr, O2 Sensor 1 yr
-
Replacement Sampling Assembly: 0019-3265 Replacement Water Trap/Filter Assembly (For Probe Assembly)
-
Carbon Monoxide Measurement Range: 0 to 2000 ppm
-
O2: 0 to 20.9%
-
CO: 0 to 2000 ppm
-
Stack Temperature: -4 to 1202°F (-20 to 650°C)
-
Ambient Temperature: -4 to 212°F (-20 to 100°C)
-
Number of Fuels: 6
-
Display Size: 2.7"
-
Display Languages: English, Spanish, French
-
Power: 4 x AA disposable alkaline batteries ≈ 15 hours
-
Memory: 10 locations
-

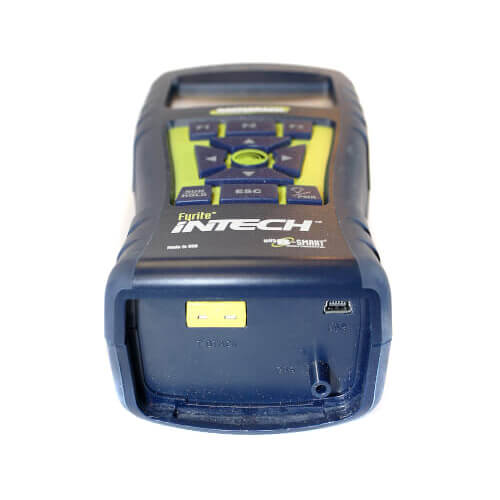

Communications: USB 2.0 (mini-B)
-
Approvals: CE, EN 50379-1 & -3
-
Ambient Temp. Range: +23°F to +113°F
-
Batteries Included: Yes
-
Battery Chemistry: Alkaline
-
Battery Run Time: 15 hrs.
-
Battery Size: AA
-
Calibration Certification_combined: Available Separately 0024-8512
-
Carbon Monoxide Measured: 0 ppm to 2000 ppm
-
Digital Display Screen Type: LCD
-
Features: Ambient Co Monitoring Function Allows Technicians To Check For Dangerous Co Levels, Combustion App Allows Users To Create Custom Reports
-
Fuel Type: 5 Pre-Programmed Fuels Options, Natural Gas, Oil #2, Oil #6, Kerosene, B5, And Propane/LPG
-
Manufacturer Warranty Length: 2 yrs.
-
Maximum Carbon Dioxide Measured: 2000 ppm
-
Maximum Carbon Monoxide Measured: 2000 ppm
-
Maximum Combustion Efficiency: 100%
-
Maximum Excess Air Measured: 250%
-
Maximum Operating Temperature: 113°F
-
Maximum Oxygen Measured: 20.9% v/v
-
Maximum Stack Temperature Measured: 1202°F
-
Min. Excess Air Measured: 0%
-
Minimum Carbon Dioxide Measured: 0 ppm
-
Minimum Combustion Efficiency: 0.1%
-
Minimum Operating Temperature: 23°F
-
Minimum Oxygen Measured: 0% v/v
-
Minimum Stack Temperature Measured: -4°F
-
Number Of Batteries Required: 4
-
Oygen Measured: 0% v/v to 20.9% v/v
-
Primary/ambient Air Temp.: +23°F to +113°F
-
Selectable Fuel Options: B5, Bio Fuel, Butane, Kerosene, Koks, Leg, Lpg, Natural Gas, Oil 2/6, Propane
-
Stack Temperature Measured: -4°F to +1202°F
-
Brand: Bacharach
-
MPN: 0024-8512
-
Model: Fyrite InTech
-
Gas(es) Analyzed: O2, CO2, CO
