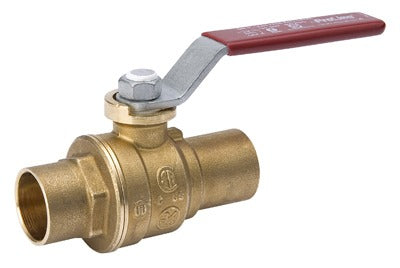

B38;K Llc 107-453NL Lead Free Ball Valve 0.5 Inch Solder

Product Description

The B38;K LLC 107-453NL is a lead-free, full-port ball valve with solder-end connections sized at 0.5 inches, designed for use in plumbing and mechanical systems where both steam and water service are required. It is rated at 150 PSI WSP (water steam pressure) and 600 PSI non-shock WOG (water, oil, gas), with an operating temperature range of -20 degrees F to 300 degrees F. The valve features a galvanized handle with a vinyl grip for positive shutoff. Licensed plumbers and pipefitters install this valve in commercial and residential applications where lead-free compliance is mandatory.

This valve is suited for potable water, steam distribution, hydronic heating, and general plumbing systems requiring a reliable inline shutoff. The 0.5-inch solder-end configuration makes it a direct fit in copper pipe installations. Its lead-free construction meets requirements for installations subject to safe drinking water regulations. Solder-end connections comply with ANSI B1.20.1. It is sold individually and packaged in a dispenser carton format suited for trade counter distribution.

Key Features

• Lead-free construction meets safe drinking water compliance requirements
• Rated 600 PSI non-shock WOG and 150 PSI WSP steam service
• Operating temperature range: -20 degrees F to 300 degrees F
• 0.5-inch solder-end connections comply with ANSI B1.20.1
• Galvanized handle with vinyl grip for secure manual operation
• Dispenser carton packaging suited for trade counter and shop use

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 0.5-inch copper pipe systems in residential and commercial plumbing, hydronic, and steam applications where lead-free valves are required.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ANSI standards. Shut off the water or steam supply and relieve system pressure before soldering the valve into the line. Allow the valve body to cool fully before operating the handle, as excess heat during soldering can damage internal seals. Keep the valve in the open position while making solder joints to protect the seat and ball from heat damage.
