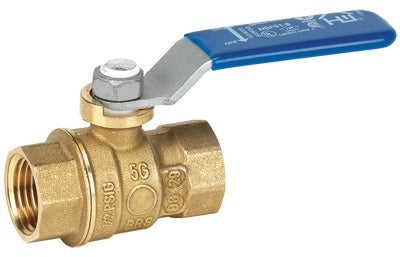

B38;K Llc 107-402NL 3/8 Inch Brass Full Port Ball Valve

Product Description

The B38;K LLC 107-402NL is a full port ball valve designed for use in plumbing, HVAC, and general piping systems where a reliable, low-restriction shutoff is required. Constructed from forged brass and certified lead free, this valve meets the demands of potable water and hydronic applications. It is rated at 600 psi non-shock WOG and 150 psi WSP steam, with an operating temperature range of -20 degrees F to 300 degrees F. The 3/8 inch female pipe thread connections comply with ANSI B1.20.1, making installation straightforward for licensed plumbers and HVAC technicians working on residential or light commercial systems.

This valve is suited for residential and light commercial installations involving water supply lines, gas distribution where approved, hydronic heating loops, and general fluid control applications. The full port design minimizes pressure drop across the valve, which is important in systems where flow rate and head loss are critical to system performance. Its compact forged brass body holds up in tight mechanical spaces common in boiler rooms, utility chases, and equipment closets.

Key Features

• Full port design for minimal flow restriction and reduced pressure drop
• Forged brass construction for durability and corrosion resistance
• Lead free certification suitable for potable water systems
• CSA certified for verified performance and code compliance
• Rated 600 psi non-shock WOG and 150 psi WSP steam
• 3/8 inch female pipe threads compliant with ANSI B1.20.1

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 3/8 inch female pipe thread applications in residential and light commercial plumbing and HVAC piping systems.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes and the International Plumbing Code. Shut off and depressurize the system before installation. Apply thread sealant or PTFE tape to male threads before making up connections, and avoid over-tightening to prevent damage to the valve body or mating fittings. Verify that the valve orientation and handle clearance are appropriate for the intended application before final installation.
