B38;K Llc 102-703 Heavy Duty Boiler Drain Valve

Product Description

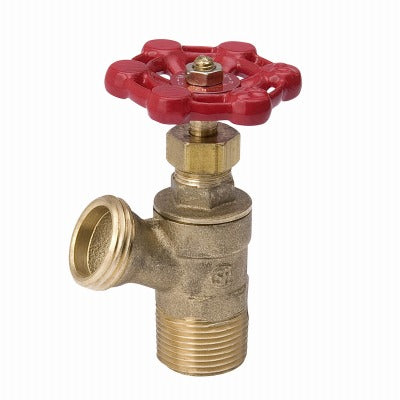

The B38;K LLC 102-703 is a heavy duty boiler drain valve designed for residential and light commercial hydronic heating systems. It features a 1/2 inch male external pipe thread inlet and a 3/4 inch hose thread outlet, allowing direct connection to a standard garden hose for controlled draining. The internal solder connection option provides an alternative copper-pipe installation method. A neoprene seal washer and stuffing box construction contain the stem packing and minimize leakage during operation. A large cast iron handle provides firm grip and reliable shutoff. Pipe threads comply with ANSI B1.20.1 and hose threads comply with ANSI B1.20.7. Licensed plumbers and HVAC service technicians are the primary installers of this fitting.

This boiler drain valve is used on boilers, water heaters, and hydronic heating distribution piping where periodic system draining or flushing is required. The 1/2 inch male pipe thread inlet is a standard size that fits common boiler drain tappings. The 3/4 inch hose thread outlet accepts a standard hose connection for directing discharge to a floor drain or exterior. It is suited for both new installation and replacement service in residential boiler rooms and mechanical spaces.

Key Features

• 1/2 inch male external pipe thread inlet — compliant with ANSI B1.20.1
• 3/4 inch hose thread outlet — compliant with ANSI B1.20.7
• Internal solder connection option for copper pipe installations
• Neoprene seal washer and stuffing box for reliable stem sealing
• Large cast iron handle for positive manual operation
• Heavy duty construction suited for boiler and hydronic system service

Compatibility

Designed as an OEM-style replacement or new-installation boiler drain valve for 1/2 inch pipe-thread tappings on residential and light commercial boilers, water heaters, and hydronic heating systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the boiler and allow the system to cool and depressurize before removing or installing any drain valve. Apply appropriate thread sealant or PTFE tape to pipe threads before assembly. For solder-connection installations, ensure the valve body is cool before soldering to avoid damaging the internal neoprene seal components.
