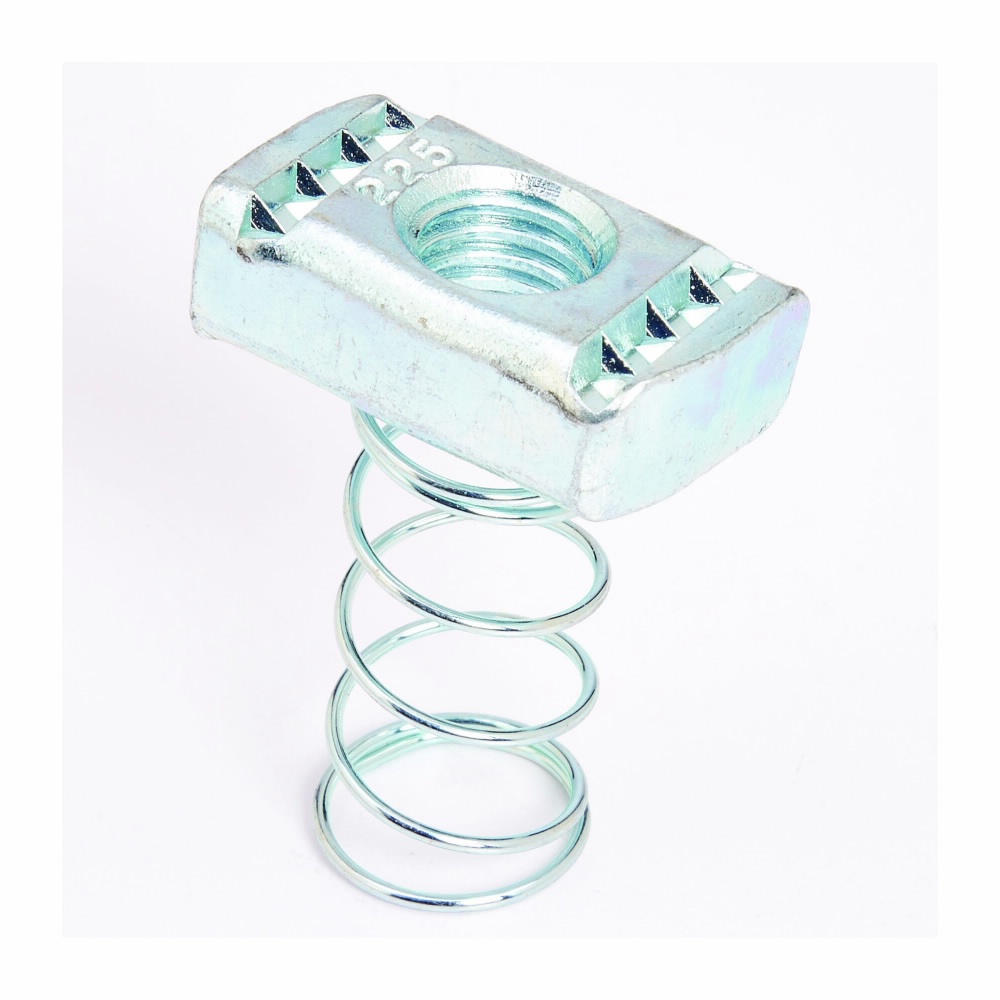

B-Line N224SS6 1/4 Inch Spring Nut

Product Description

The B-Line N224SS6 is a spring nut designed for use in strut assemblies. This product features a stainless steel construction and is tailored for suitability with B22, B24, B26, and B32 series medium channel. It has a screw thread size specification of one-fourth inch by twenty threads per inch. The spring nut is essential for providing robust fastening capabilities in various applications.

• Stainless steel construction ensures durability.
• Compatible with multiple strut series.
• Pull-out strength rated at two hundred fifty pounds.

Product Highlights

This spring nut is built to accommodate a wide range of installation scenarios and supports effective load management.

Product Information

Standard Information

• Manufacturer: B-Line Systems
• Brand: B-Line

Technical Specifications

• Catalog Number: N224SS6
• Type: Nut with Spring
• Material: 316 Stainless Steel
• Thread Size: 1/4-20 TPI
• Height: 0.85 Inch
• Length: 1.75 Inch
• Weight: 0.07 lb
• Applications: Strut fittings, bolted framing
