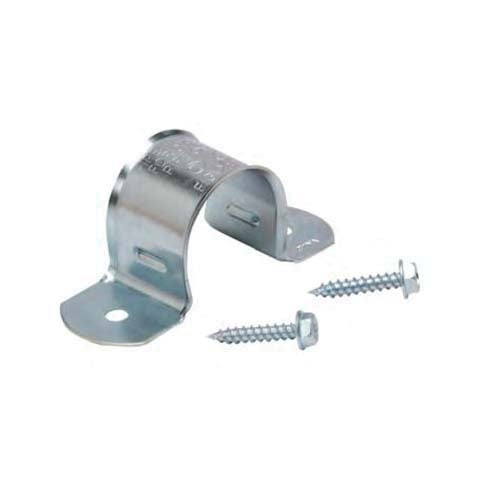

B-Line FIG 23-1 Double Fastener Pipe Strap 1 in

Product Description

The B-Line FIG 23-1 is a pipe strap designed for the support and attachment of pipe to structural members. This double fastener pipe strap is made from pre-galvanized carbon steel, making it suitable for various applications such as supporting CPVC piping in automatic fire sprinkler systems.

• Constructed from pre-galvanized carbon steel
• Compatible with CPVC pipes
• Includes two UL listed hex head self-threading screws for easy installation

Product Highlights

The FIG 23-1 features a flared edge design that protects CPVC pipe from rough surfaces and incorporates snap restrainers for faster installation. It is recommended to use rechargeable electric drills for installation.

Product Information

Standard Information

• Brand: B-Line
• Manufacturer: Cooper Industries

Technical Specifications

• Item Name: Pipe Strap
• Type: Double Fastener
• Material: Carbon Steel
• Finish: Pre-Galvanized
• Length: 3-3/8 in
• Width: 1-3/16 in
• Nominal Size: 1 in
• Model: 23
• Sub Brand: Tolco
• Standards/Certifications: Federal specification WW-H-171-E and A-A-1192A or ANSI/MSS SP-69 and SP-58, cULus listed, NFPA 13, 13R and 13D
• Applications: For CPVC pipe
