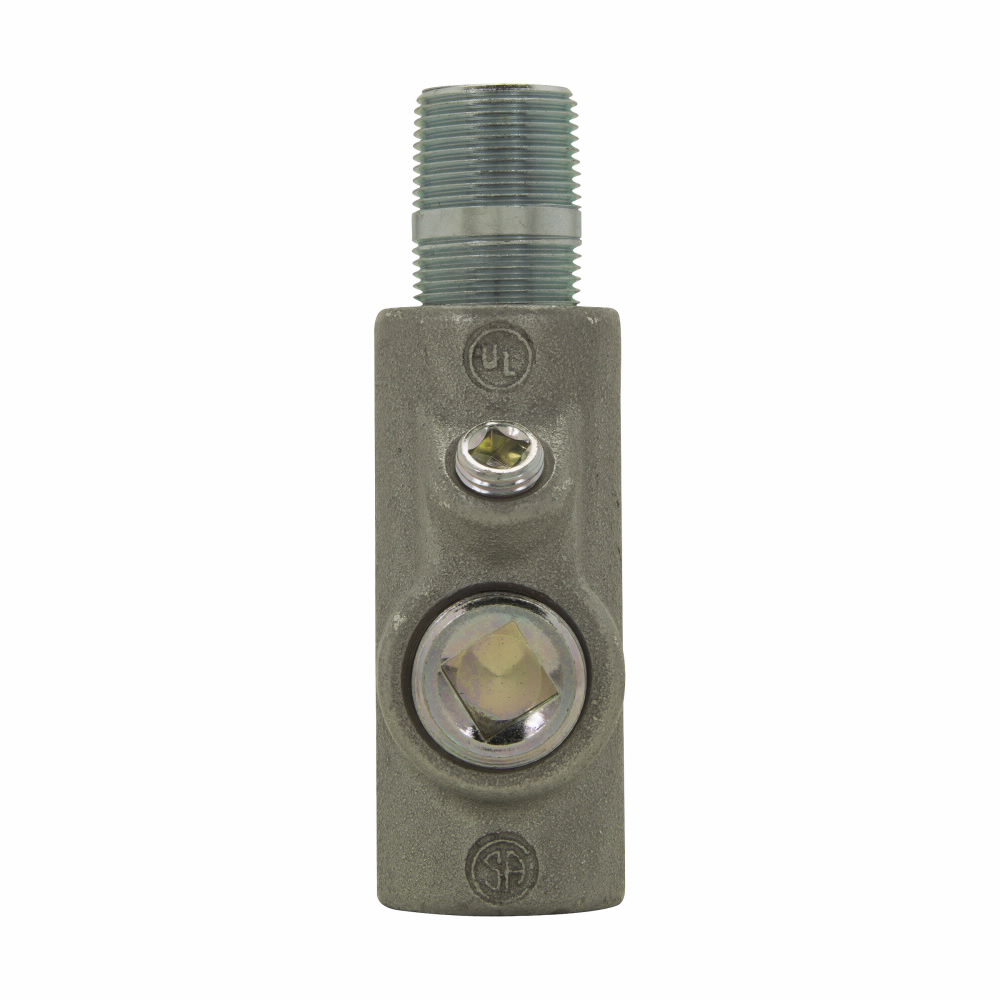

B-Line EYS216 Crouse-Hinds EYS216 3/4 Vertical/Horizontal Male/Female Hub Conduit Sealing Fitting

Product Description

The Crouse-Hinds EYS216 is a conduit sealing fitting designed for both vertical and horizontal installations. This model utilizes Feraloy iron alloy and/or ductile iron materials to ensure durability and resistance to hazardous environments. It is rated for Group B applications and fits standard three-fourth inch conduits.

• Vertical and horizontal installation capability
• Constructed from Feraloy iron alloy
• Group B rated for hazardous locations

Product Highlights

This fitting is ideal for sealing conduits in demanding environments, providing a secure connection to prevent the passage of gases and vapors. It is particularly suited for electrical installations in hazardous locations.

Product Information

Standard Information

• Brand: Crouse-Hinds
• MPN: EYS216

Technical Specifications

• Type: Male/Female Hub
• Material: Iron
• Finish: Electro-Galvanized/Aluminum Acrylic Painted
• Trade Size: 3/4 Inch
• Height: 3.69 inches
• Width: 1.5 inches
• Length: 1.5 inches
• Weight: 1.15 lb
• Enclosure: Class I Div 1 2 Group A B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III
• Applications: Conduit System
