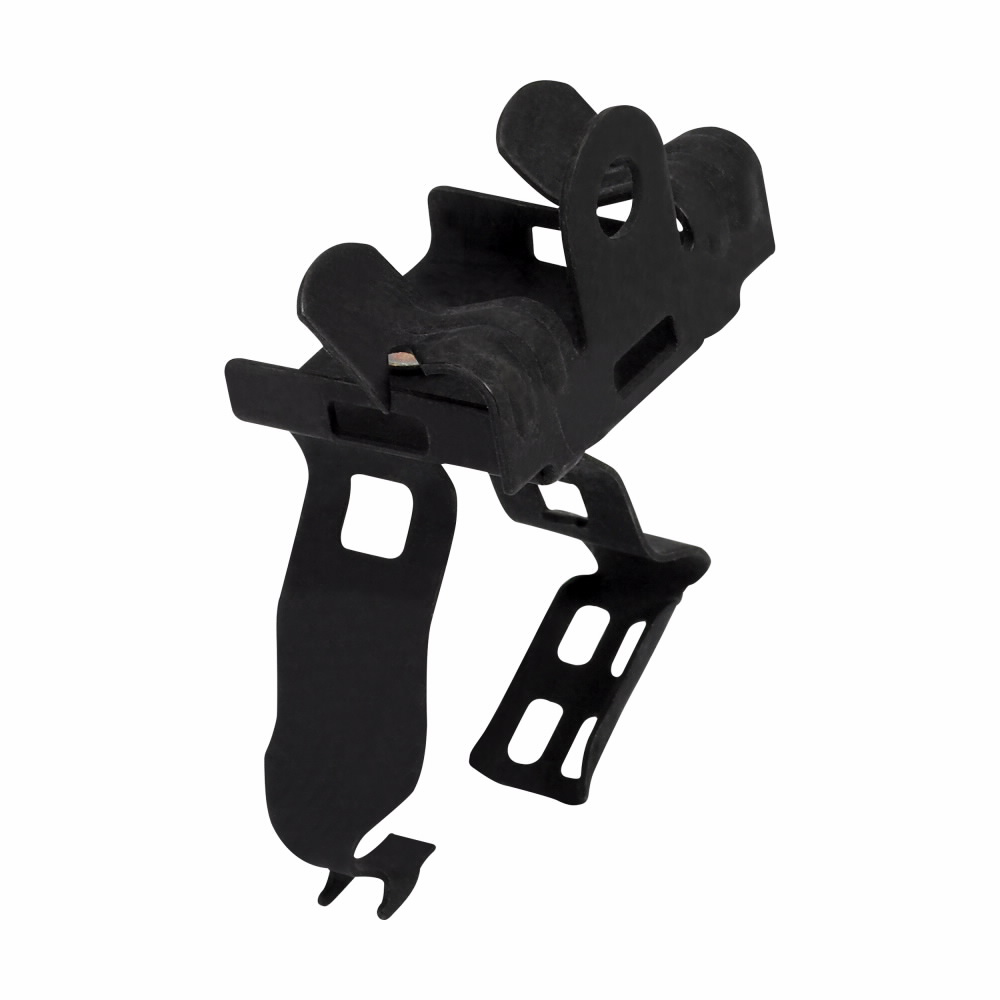

B-Line BG-8-12-U-5-8 Conduit to Beam Fastener, 1/2 in, 3/4 in Conduit, 5/16 to 1/2 in Flange

Product Description

The B-Line BG-8-12-U-5-8 conduit to beam fastener is designed to support 1/2 inch and 3/4 inch conduit with a flange thickness between 5/16 inch to 1/2 inch. This fastener has a load capacity of seventy-five pounds and is made from high carbon steel with a zinc phosphate finish, ensuring durability and strength.

• Unique Guide-Rite fastener allows for swift installation.
• Compatible with both 1/2 inch and 3/4 inch conduit.
• Rotates three hundred sixty degrees for versatile positioning.

Product Highlights

This product is suitable for use with beams in commercial and industrial settings.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: B-Line

Technical Specifications

• Load Capacity: 75 lb
• Mounting Type: Bottom
• Flange Thickness: 5/16 to 1/2 in
• Dimensions: 1 in L x 1 in W x 1 in H
• Conduit Size: 1/2 in, 3/4 in
• Material: High Carbon Steel
• Finish: Zinc Phosphate
• Specifications: 360 deg Rotation Pivot
