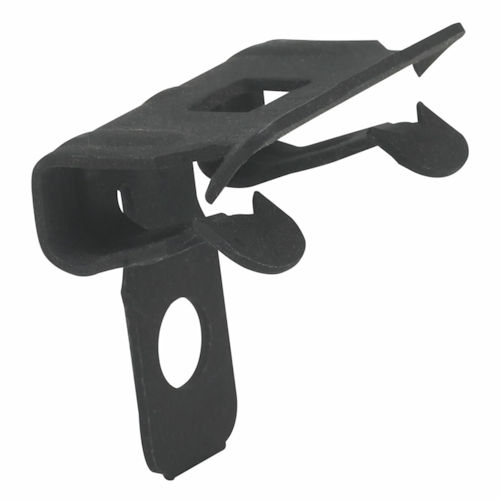

B-Line BE-5-8 FASTENER BEAM FLG 5/16 TO 1/2IN 200LB

Product Description

B-Line BE-5-8 Beam Flange Fastener is designed for beams with a flange thickness of five-sixteenths to one-half inch and supports a load capacity of 200 pounds. This hammer-on fastener allows for quick attachment to bulb tees and beams, making installation easy and efficient.

• Hammer-on design for quick installation.
• Clearance hole for one-fourth inch bolt in tab.
• Manufactured from heat-treated cold-rolled high carbon steel.

Product Highlights

The B-Line BE-5-8 Beam Flange Fastener is suitable for both commercial and institutional buildings. It is ideal for various applications including lighting and equipment support.

Product Information

Standard Information

• Brand: B-Line
• Manufacturer: Eaton

Technical Specifications

• Finish: Zinc Plated
• Load Capacity: 200 lb
• Flange Thickness: 5/16 to 1/2 in
• Material: Steel
• Standards: UL/CUL listed
• Type: Hammer-On
• Suitable For Use With: Beam Fastener and Bulb Tees
• UPC: 781011183004
