B-Line BCTS2-24 24 Conduit Trapeze Support 8 Conduit Holes 2 EMT / 2 Rigid Max

Product Description

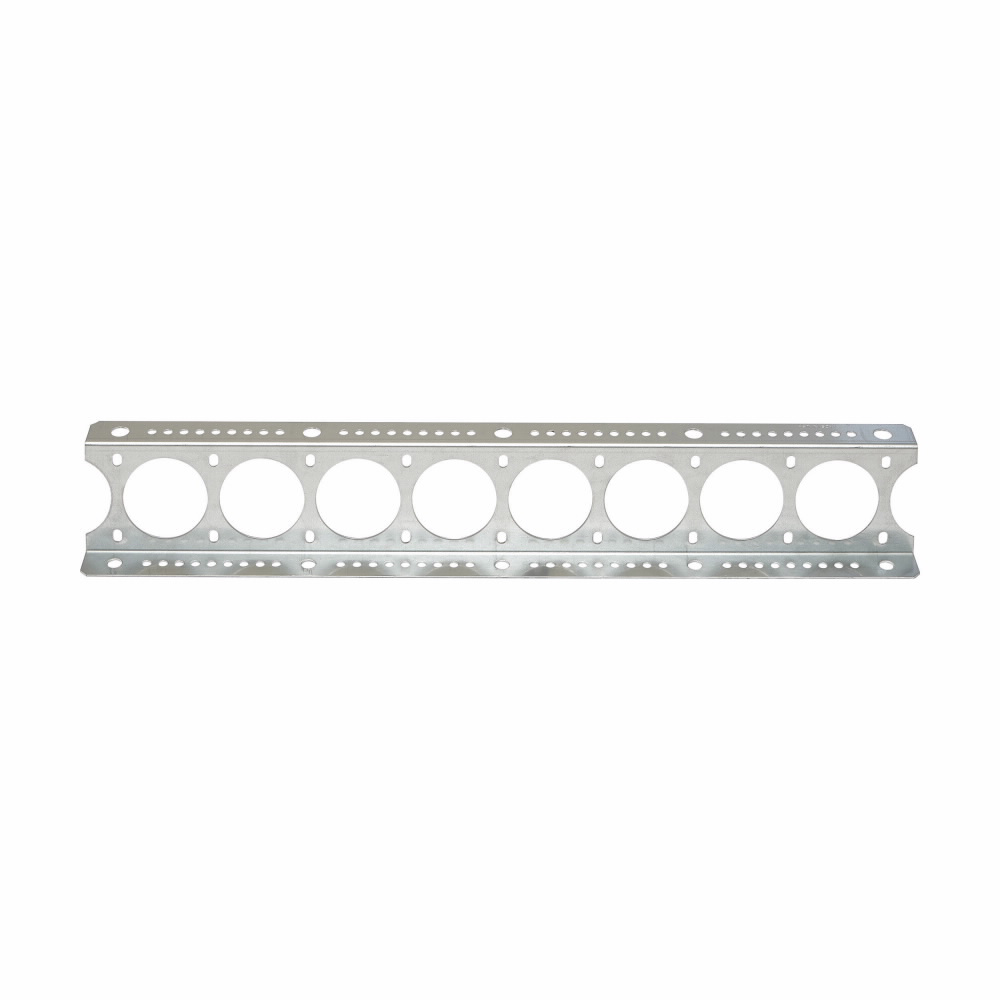

The B-Line BCTS2-24 is a conduit trapeze support made by Eaton. It features a design that allows the support of up to eight conduits, accommodating two inch EMT or rigid conduit. This product measures three point sixty-two inches in height, twenty-six inches in length, and one point three one two five inches in width. It is constructed from stainless steel with a yellow zinc chromate finish.

• Supports up to eight conduits.
• Compatible with two inch EMT and rigid conduit.
• Constructed from stainless steel for durability.

Product Highlights

This conduit trapeze support is designed for a wide range of applications including installations in datacenters, commercial buildings, and industrial facilities.

Product Information

Standard Information

• Brand: B-Line
• Manufacturer: Eaton B-Line

Technical Specifications

• Catalog Number: BCTS2-24
• UPC: 799038767374
• Length: 26 inches
• Width: 1.3125 inches
• Height: 3.62 inches
• Weight: 1.75 lb
• Material: Stainless Steel
• Finish: Yellow zinc chromate
• Made in USA: Yes
• Application: Trapeze support for pipes
