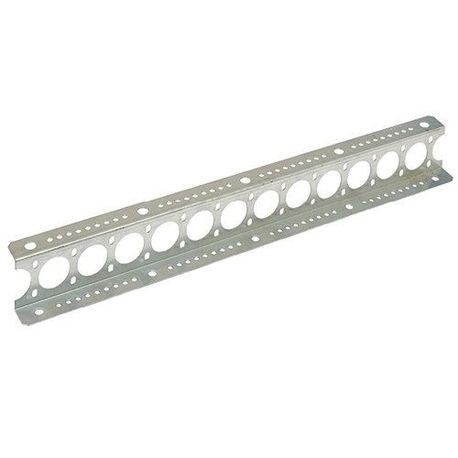

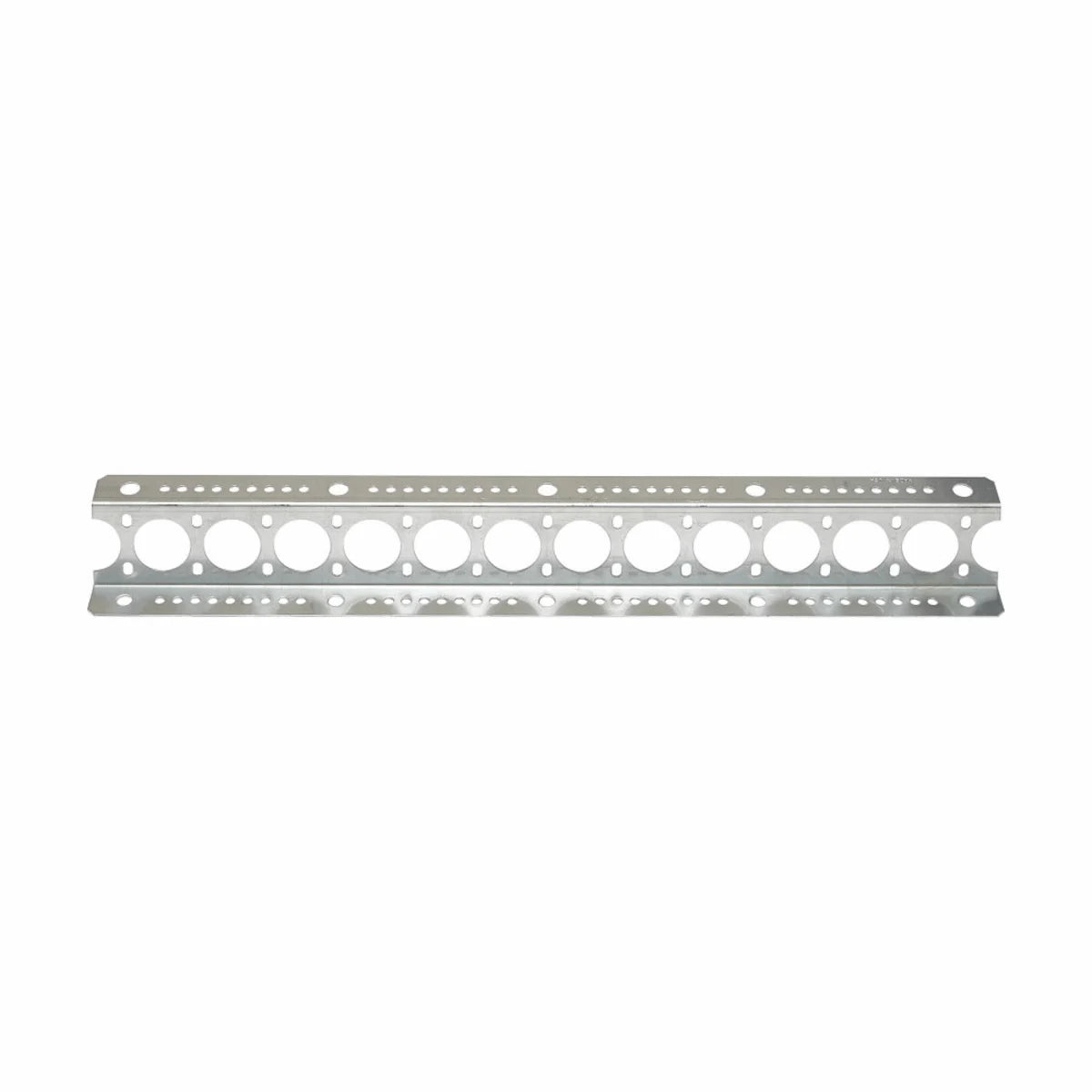

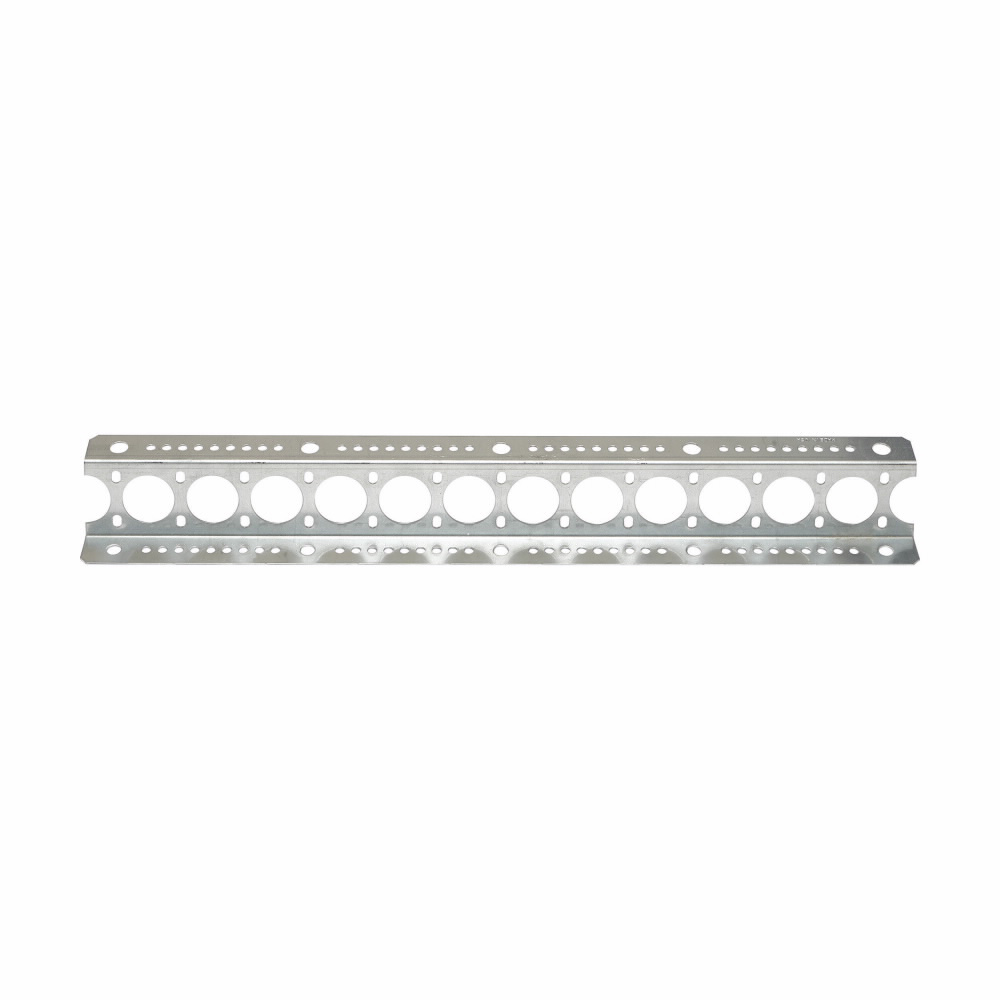

B-Line BCTS1-24 Conduit Trapeze Support 450 lb Load 24 in 12 Holes

Product Description

The B-Line BCTS1-24 is a versatile conduit trapeze support designed to hold up to twelve conduits. It is suitable for use with one and one-quarter inch EMT and one-inch rigid conduit. This unit is constructed from stainless steel with a yellow zinc chromate finish, ensuring durability and resistance to corrosion.

• Supports up to 450 pounds.
• Features twelve conduit holes for flexibility in installation.
• UL listed for safety in both the US and Canada.

Product Highlights

This trapeze support is ideal for supporting multiple runs of conduit at the same elevation, making it perfect for various applications, including commercial and industrial settings. It is designed for easy installation and is compatible with standard hanger rods.

Product Information

Standard Information

• Catalog Number: BCTS1-24
• Manufacturer: B-Line Systems

Technical Specifications

• Material: Stainless Steel
• Dimensions: 26 inches L x 1.3 inches W x 2.63 inches H
• Weight: 1.62 lb
• Finish: Yellow Zinc Chromate
• Load Capacity: 450 lb
• Country of Origin: United States
• Standard Package: 12 per pack
