Product Description

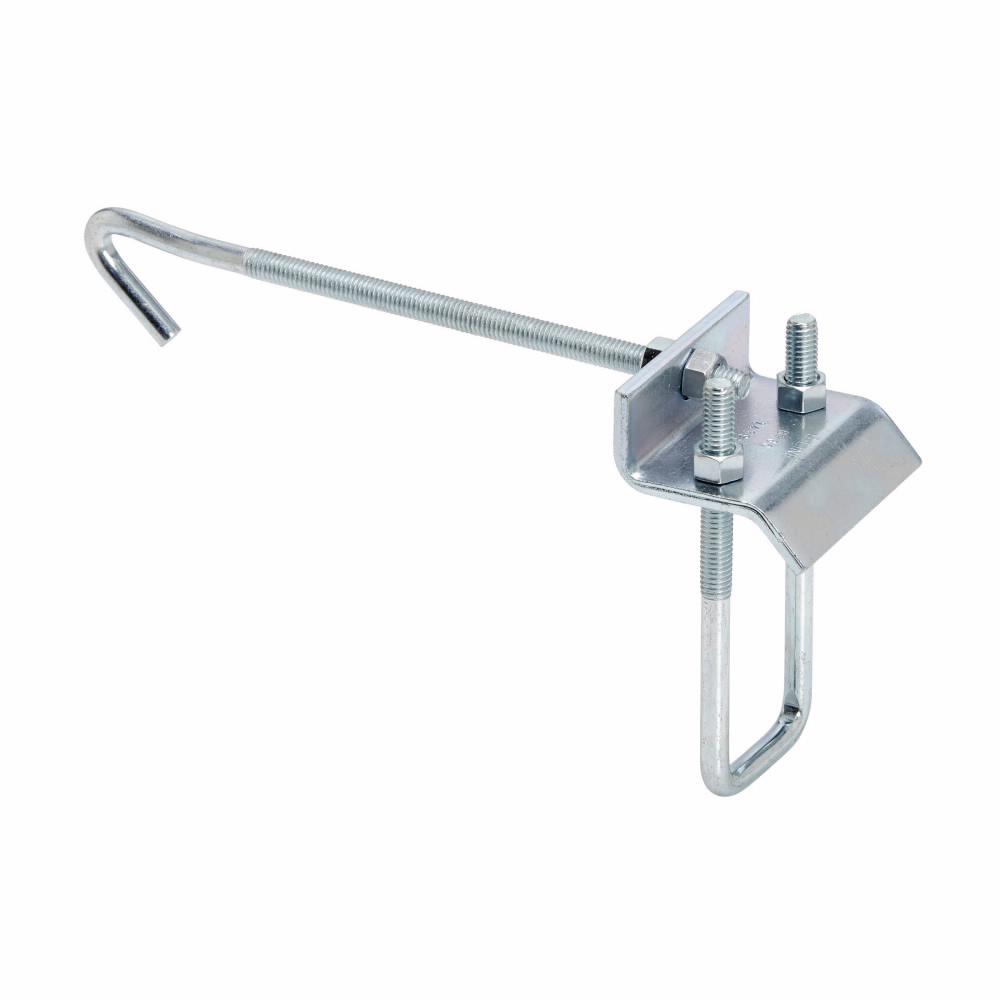

The B-Line B760-22A-J12ZN beam clamp is designed for industrial and commercial applications. It supports channels from one and five-eighths inches to three and one-quarter inches wide and accommodates flanges from four inches to five and seven-eighths inches wide. The clamp has a flange thickness of one inch. Made from carbon steel and zinc plated for corrosion resistance, it features a design load safety factor of five, providing reliable support for strut fittings and other attachments.
- Beam clamp supports channel sizes from one and five-eighths to three and one-quarter inches.
- Flange width ranges from four to five and seven-eighths inches.
- Includes B760 plate, B701 J-hook, B500-5 U-bolt, and three hex nuts.
Product Highlights
Durable construction with zinc plating ensures long-lasting use in various environments.
Product Information
Standard Information
-
Brand: B-Line
-
Manufacturer: Eaton
Technical Specifications
-
Channel Size: One and five-eighths to three and one-quarter inches
-
Flange Width: Four to five and seven-eighths inches
-
Flange Thickness: One inch
-
Material: Carbon steel
-
Finish: Zinc plated
-
Design Load Safety Factor: Five
-
Dimensions: Three and one-eighth inches wide
-
Suitable For Use With: Strut and BF fittings
