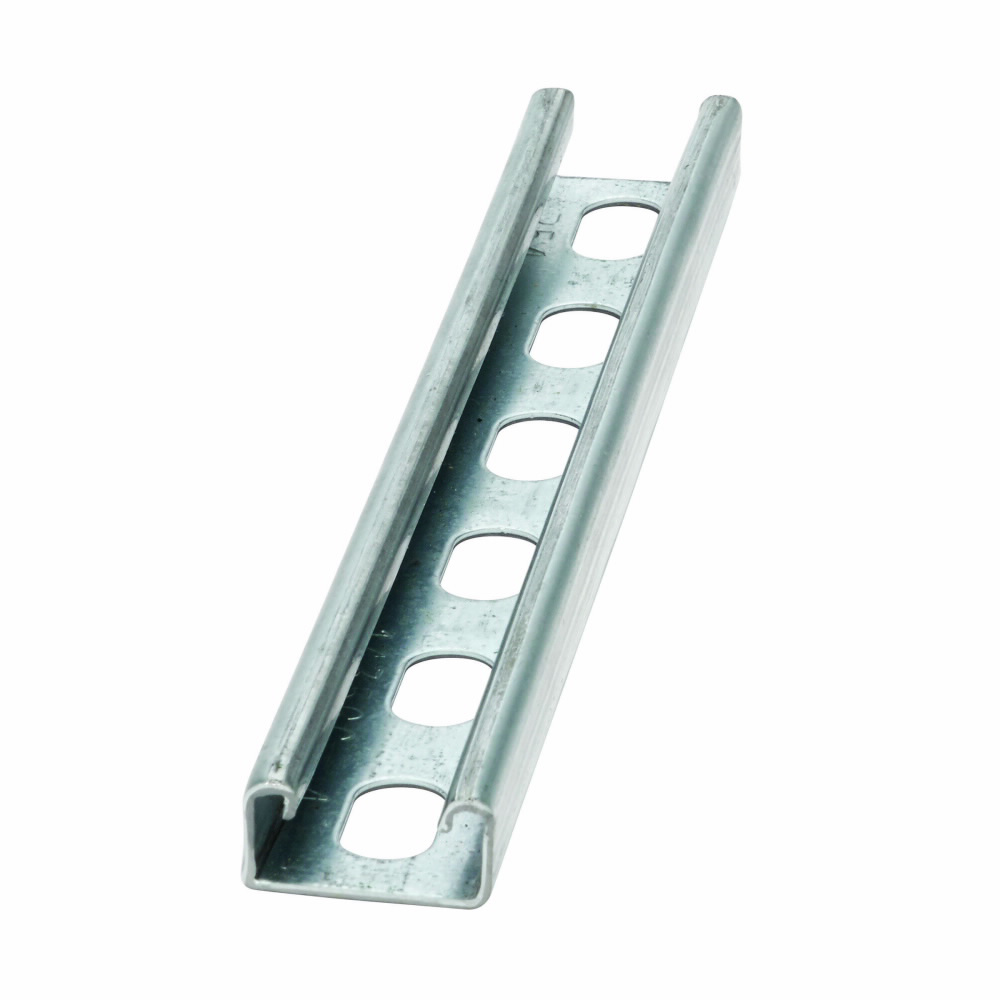

B-Line B54SH-120SS4 Single Slotted Metal Framing Channel 14 ga (120 in) B54SH-120SS4

Product Description

B-Line B54SH-120SS4 is a single slotted metal framing channel. This channel has a length of one hundred twenty inches, a width of one and five-eighths inches, and a depth of thirteen-sixteenths inches. It is made of 304 stainless steel with a thickness of fourteen gauge and has slots measuring seven-eighths inch by nine-sixteenths inch. The slots are spaced two inches apart.

• Constructed from durable 304 stainless steel
• Suitable for versatile framing applications
• Features continuous slots for easy attachment

Product Highlights

This framing channel is designed for electrical, mechanical, and structural applications. The material ensures both strength and resistance to corrosion.

Product Information

Standard Information

• Brand: B-Line
• Manufacturer: Eaton

Technical Specifications

• Type: Single Slotted
• Length: 120 in
• Width: 1-5/8 in
• Depth: 13/16 in
• Material: 304 Stainless Steel
• Thickness: 14 ga
• Slot Size: 7/8 in L x 9/16 in W
• Slot Spacing: 2 in
• Load Capacity: 93 lb
