B-Line B3373-3PLN Riser Clamp 3 Plain B3373-3PLN

Product Description

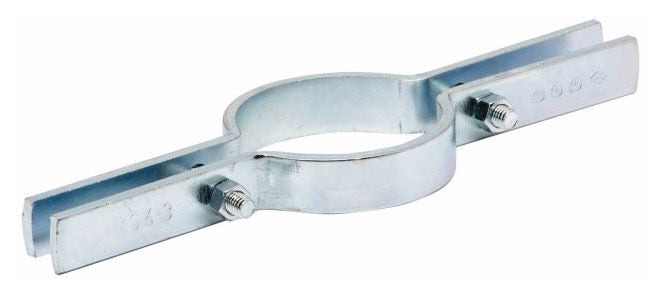

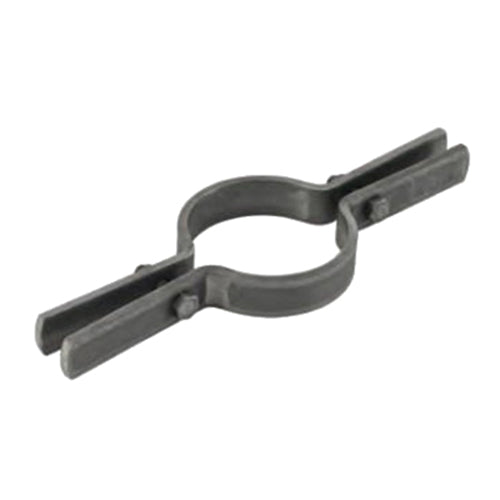

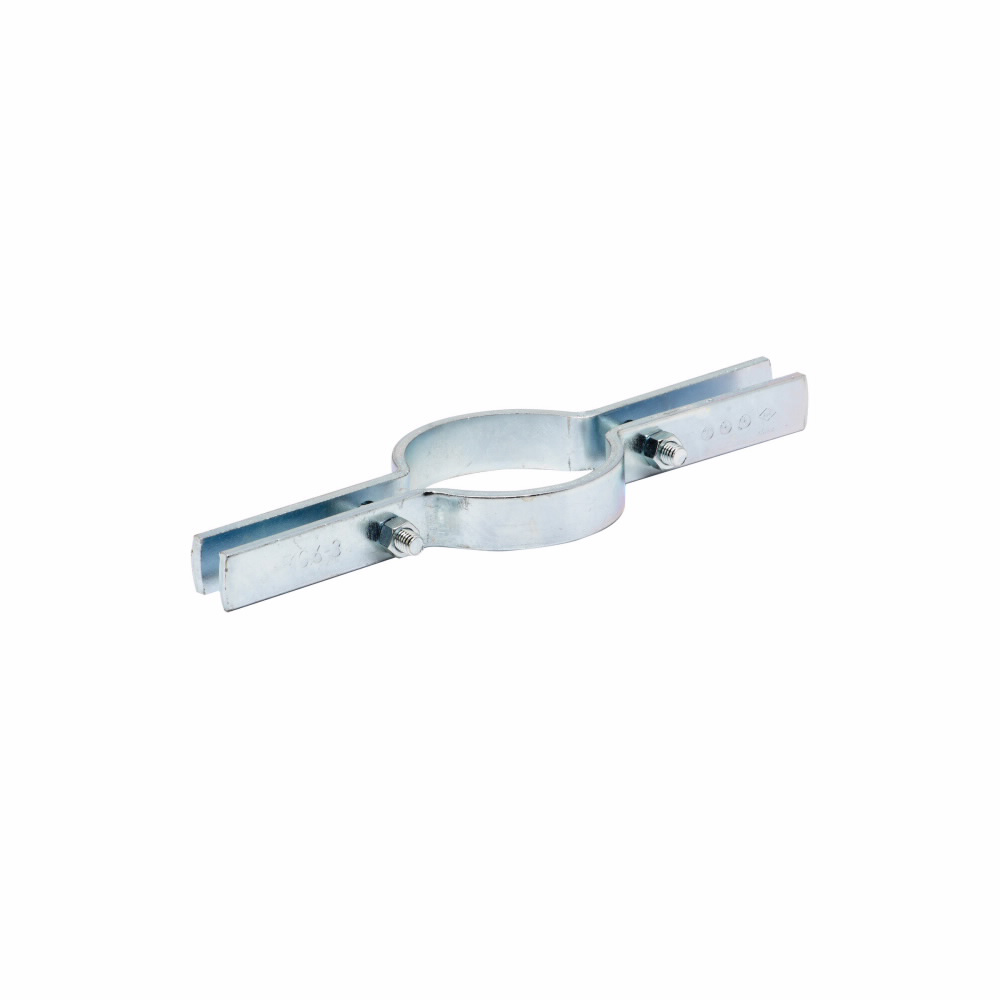

The B-Line B3373-3PLN Riser Clamp is a reliable solution for supporting vertical piping. This clamp is made from durable steel and is designed to fit pipes three inches in diameter. It has an overall length of eleven and fifteen-sixteenths inches.

• Type: 2-Piece, Riser, Standard
• Load Rating: 530 pounds
• Temperature Rating: 650 degrees Fahrenheit

Product Highlights

This riser clamp meets federal specifications and ANSI standards for vertical piping support. It is suitable for various applications requiring dependable pipe attachment.

Product Information

Standard Information

• Manufacturer: B-Line
• UPC: 78101172070

Technical Specifications

• Model: B3373
• Pipe Size: 3 inches
• Clamp Material: Steel
• Finish: Plain
• Overall Length: 11-15/16 inches
• Screw/Bolt Size: 3/8 Inch-16 TPI x 1-1/2 Inch
• Number of Screws/Bolts: 2
• Load Capacity: 530 pounds
• Applicable Standards: Federal Specification WW-H-171E/A-A-1192A, ANSI/MSS SP-69/58, UL (Canada and US), FM
