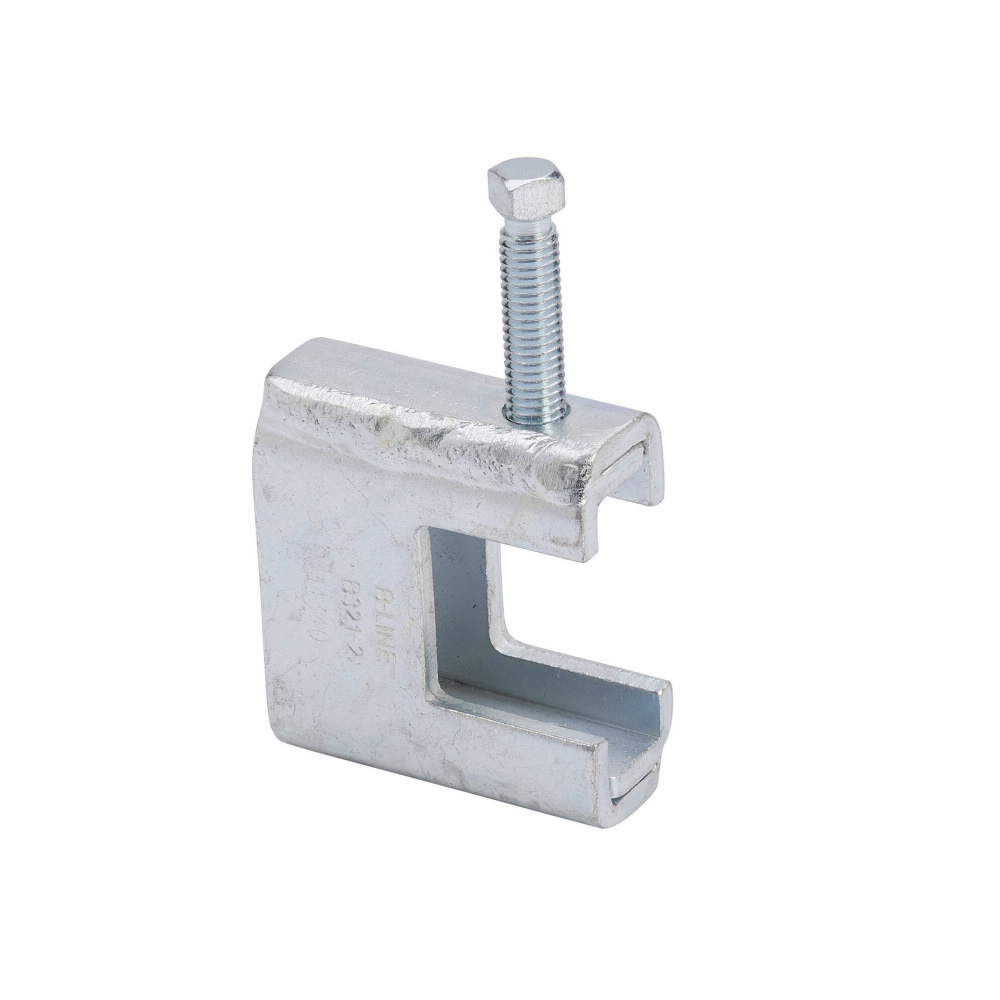

B-Line B321-5ZN BM Clamp 3/4-10 Rod

Product Description

The B-Line B321-5ZN BM Clamp is designed to support 3/4-10 rods securely. This clamp is made of steel and meets high-strength requirements, with a load capacity of two thousand pounds. It is suitable for use with 1-11/16 inch thick beams. The clamp is zinc plated to ensure durability and corrosion resistance.

• Load capacity of 2000 pounds
• Rod size is 3/4-10
• Made from low carbon steel

Product Highlights

This beam clamp provides a reliable solution for securing rods and beams in various applications.

Product Information

Standard Information

• Brand: B-Line
• Manufacturer Part Number: B321-5ZN

Technical Specifications

• Material: Low Carbon Steel
• Finish: Electro-Zinc Plated
• Dimensions: 3-1/4 inches L x 3-23/32 inches H
• Flange Thickness: 3/8 to 1-11/16 inches
• Load Capacity: 2000 lb
• Includes: 5/8-11 Set Screw
• Standards/Approvals: Federal Specification WW-H-171E/A-A-1192A Type 42, ANSI/MSS SP-69/SP-58 Type 41
• Suitable For Use With: 1-11/16 inch thick beam and rod
