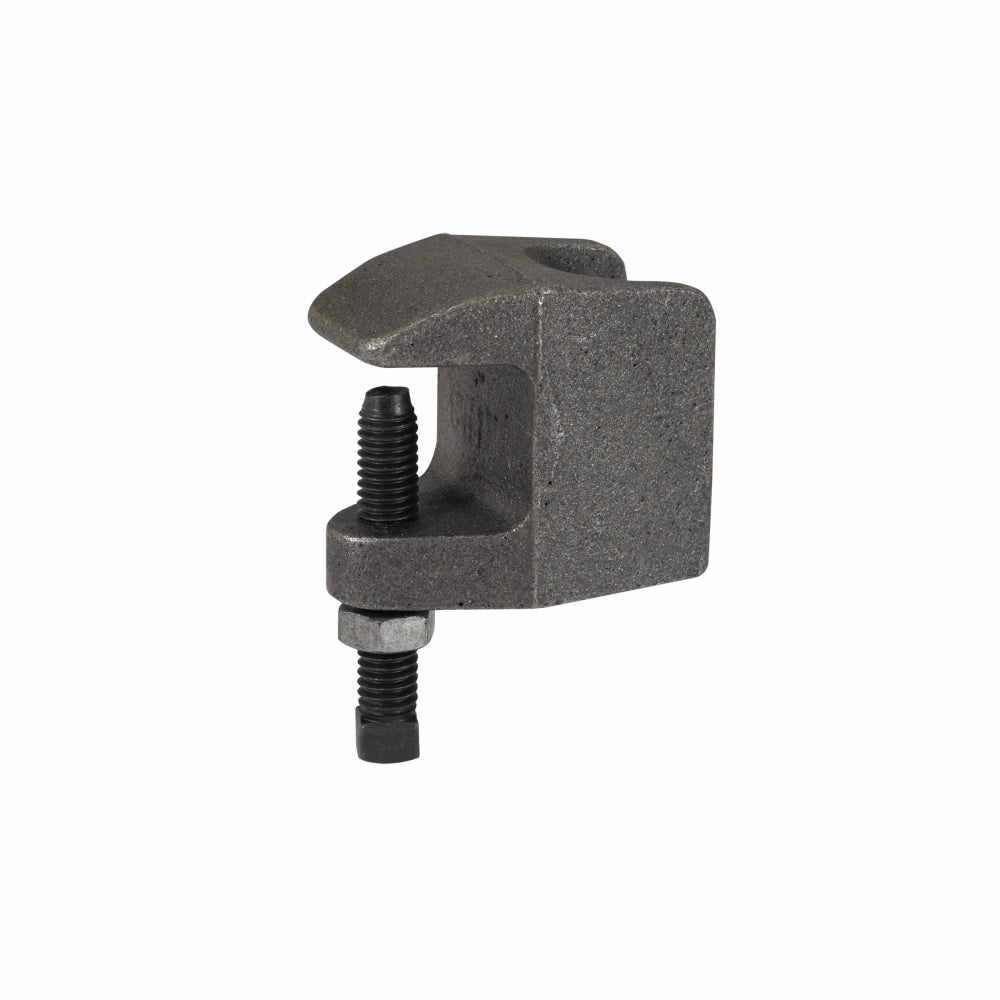

B-Line B3034-3/8PLN C-Clamp 3/8-16 3/4in 560lb Cast Malleable Steel

Product Description

The B-Line B3034-3/8PLN C-Clamp from Eaton is designed for effective fastening in various applications. It features a three-eighths inch by sixteen thread size and can support loads up to five hundred sixty pounds. This clamp is suitable for use with pipe hangers and can attach to beams and flanges with a maximum thickness of three-quarters of an inch. Its construction from cast malleable steel ensures durability.

• Load Capacity: 560 lb
• Dimensions: 1-5/8 in L x 7/8 in W x 2 in H
• Used with: Pipe Hanger

Product Highlights

The clamp includes a hardened cup point set screw and jam nut for secure fitting. It is versatile for both top and bottom flange applications and offers easy installation.

Product Information

Standard Information

• Manufacturer: Eaton B-Line
• Catalog Number: B3034-3/8PLN

Technical Specifications

• Material: Cast Malleable Steel
• Finish: Plain
• Rod Size: 3/8-16
• Flange Thickness: 3/4 in
• Applications: Ideal for residential and commercial buildings, industrial facilities, and datacenters
• Specifications: Suitable for use with 4 in pipe
