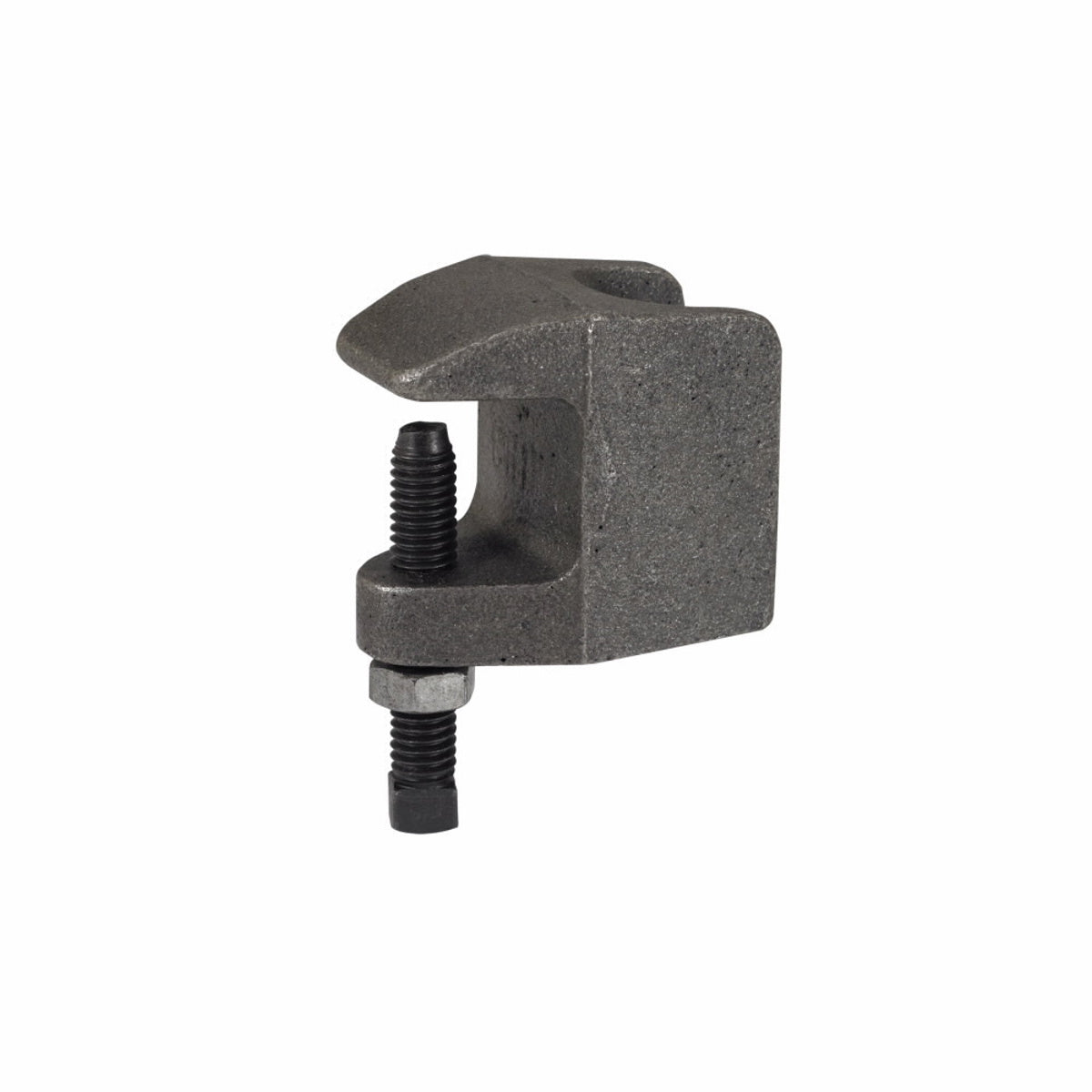

B-Line B3034-1/2PLN C-CLAMP 1/2-13 3/4IN 810LB CAST MAL STL

Product Description

B-Line B3034-1/2PLN is a mechanical C-clamp designed for use with a half-inch threaded rod. It has a flange thickness of three-fourths inch and a load capacity of eight hundred ten pounds. This clamp is made from cast malleable steel, which provides strength and durability.

• Recommended for hanging from steel beams with flange thickness not exceeding three-fourths inch.
• Beveled lip design allows for hanging from top flanges where clearance is limited.
• Installable with the set screw either up or down, allowing for flexibility in use.

Product Highlights

This B-Line clamp is suitable for various applications, including pipe hangers and beam support. Its offset design allows for unlimited rod adjustment by threading the rod completely through the clamp, thus enabling versatile installation.

Product Information

Standard Information

• Brand: B-Line
• Manufacturer Part No: B3034-1/2PLN

Technical Specifications

• Type: Mechanical
• Material: Cast Malleable Steel
• Load Capacity: 810 lb
• Rod Size: 1/2-13
• Finish: Plain
• Dimensions: 1-13/16 in H x 1-3/16 in W x 2-3/16 in D
• Flange Thickness: 3/4 in
• Specifications: For 8 in Pipe
