B-Line B3033.58 Wide Jaw Wedge C-Clamp Power 8 in IPS Replacement B3033.58

Product Description

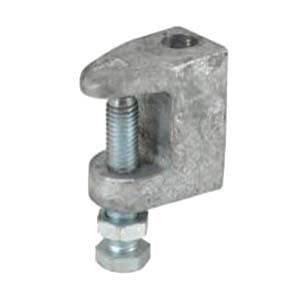

The B-Line B3033.58 is a wide jaw wedge C-clamp made from malleable iron. It facilitates the attachment of hanger rods to structural members, eliminating the need for drilling or welding. This clamp is ideal for applications requiring wider openings, especially in environments with bar joist constructions. The clamp can be installed with the set screw facing up or down to suit various installation needs.

• Constructed from durable cast malleable steel
• Includes a hardened cup-point set screw and jam nut
• Safety factor of 5 for reliable performance

Product Highlights

The B-Line B3033.58 C-clamp is designed for strength and versatility in attaching hanger rods to beams. It ensures secure hold and is compliant with industry standards.

Product Information

Standard Information

• Brand: B-Line
• Manufacturer: Cooper Industries

Technical Specifications

• Item Name: Wide Jaw Wedge C-Clamp
• Load Capacity: 1000 lb
• Type: Reversible
• Material: Malleable Iron
• Color: Black
• Dimension: 2-5/8 in L x 2-5/8 in W
• Rod Size: 5/8-11
• Includes: Set Screw and Locknut
• Finish: Plain
• Standards/Certifications: cULus listed, FM approved
