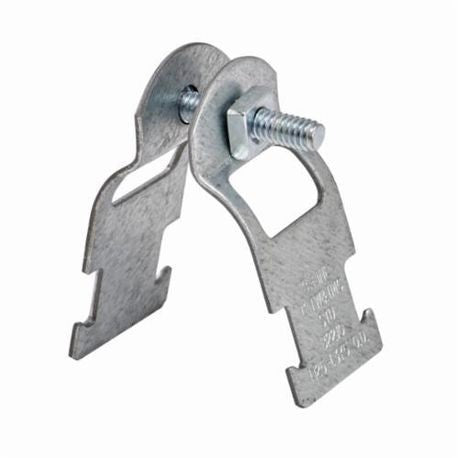

B-Line B2208PAZN Multi-Grip Pipe Clamp, Thinwall (EMT) - I.M.C. - Rigid Conduit, Pre-Assembled, 1/2 Inch

Product Description

The B-Line B2208PAZN is a multi-grip pipe clamp designed for secure attachment of thinwall EMT, I.M.C., or rigid conduit. This pre-assembled two-piece clamp is suited for use with half-inch conduits and can handle a load capacity of four hundred pounds vertically and fifty pounds transversely. Built with steel and finished with zinc plating, the clamp is resilient and reliable for various applications.

• Load capacity: 400 lb vertical, 50 lb transverse
• Suitable for thinwall EMT, I.M.C., and rigid conduit
• Includes combination recess hex head machine screw and square nut

Product Highlights

This pipe clamp is ideal for both mechanical and electrical installations. It provides a safety factor of five, ensuring robust performance in demanding environments.

Product Information

Standard Information

• Brand: B-Line
• Manufacturer: Eaton

Technical Specifications

• Type: 2-Piece
• Conduit Size: 1/2 in
• Material: Steel
• Finish: Zinc Plated
• Series: B2000
• Load Capacity: 400/50 lb
• Mounting Type: Channel
• Thickness: 16 ga
• Outside Diameter: 0.701 to 0.875 in
