B-Line Abrasives BX9 Flexible Conduit/Cable Fastener

Product Description

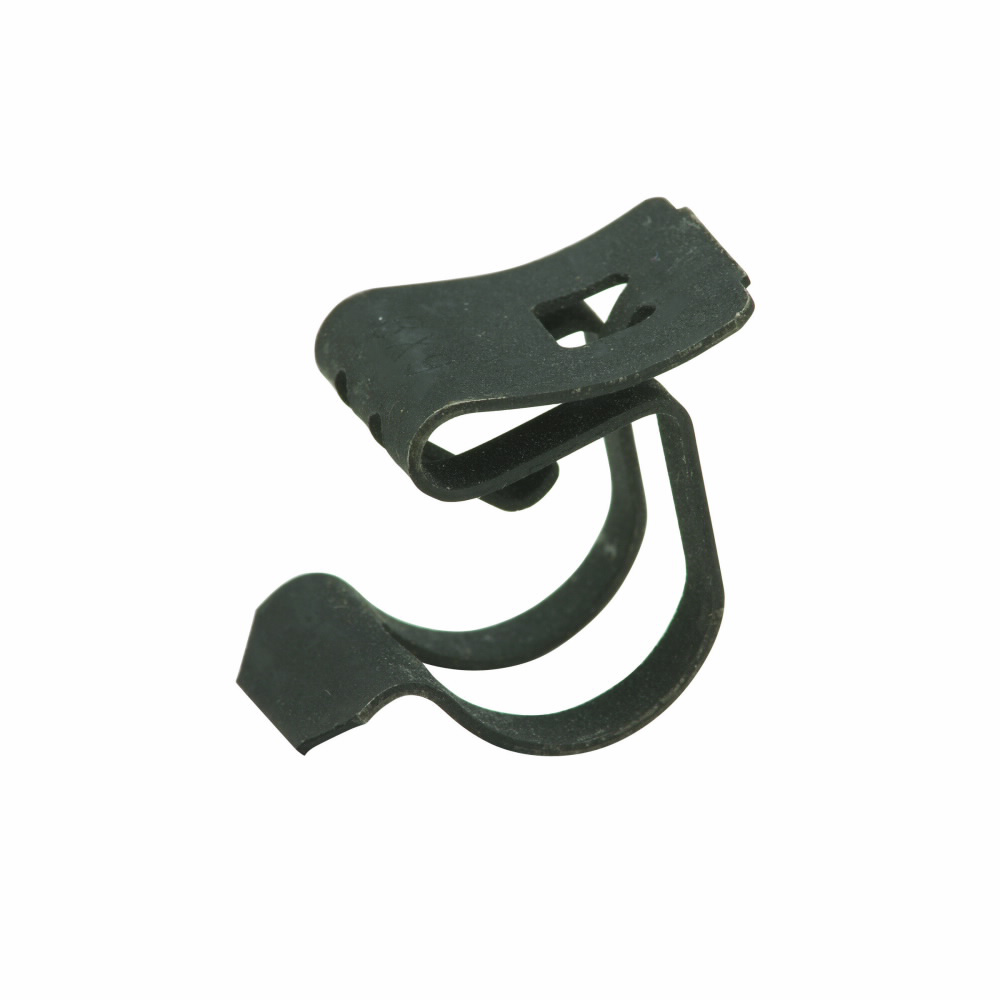

The B-Line Abrasives BX9 is a flexible fastener used to secure flexible conduit and small cables. This fastener is made from cold-rolled, high-carbon steel with a zinc phosphate finish. It easily attaches to beam flanges, bar joists, or metal studs. The BX9 is compatible with cables that have an outer diameter ranging from zero point four two to zero point seven inches and can accommodate a maximum flange thickness of five thirty-seconds inches.

• Material: Cold Rolled High Carbon Steel
• Finish: Zinc Phosphate
• Mounting Type: Snap-On

Product Highlights

Its robust design allows for secure installations of flexible conduits and cables in various applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: B-Line

Technical Specifications

• MPN: BX9
• Type: Flexible Conduit/Cable Fastener
• Material: Steel
• Cable Size: 0.420 To 0.700 In OD
• Flange Thickness: 5/32 in
• Length: 1.00 in
• Width: 1.00 in
• Height: 1.00 in
